UN9100F

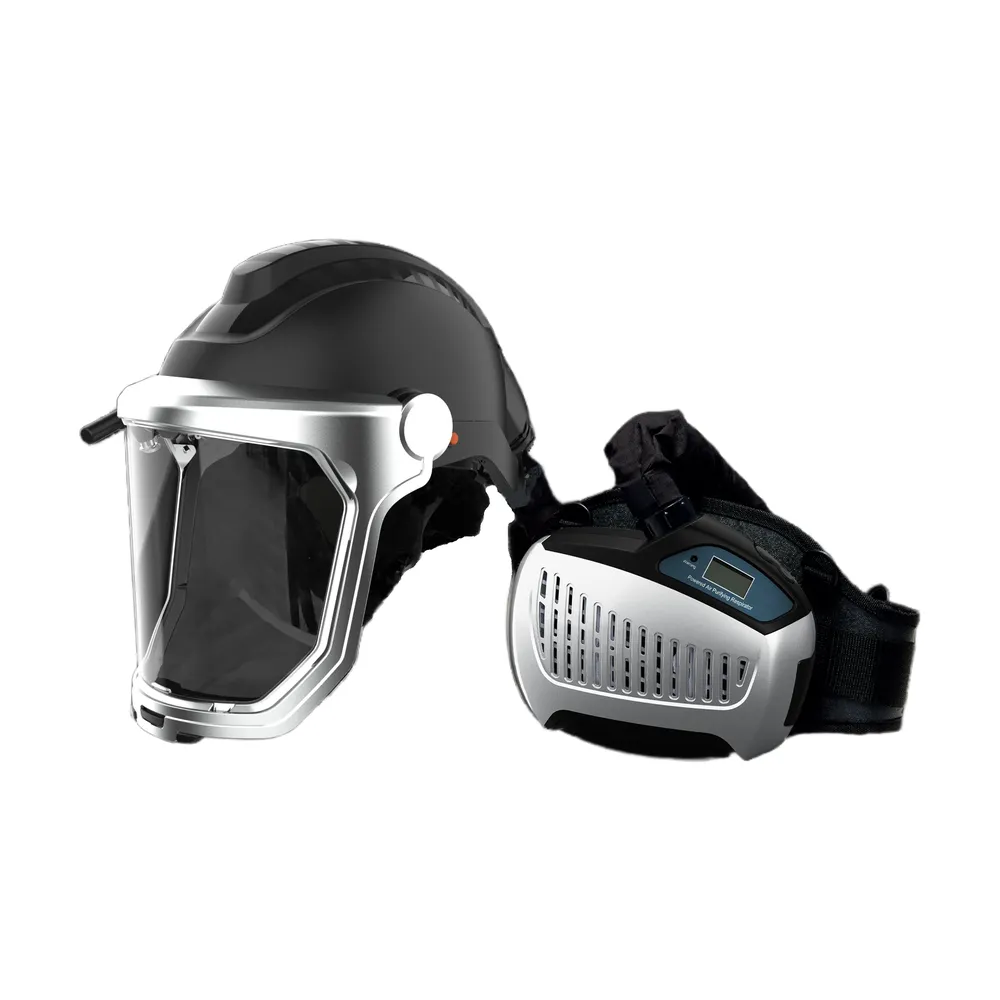

Grinding helmet combine with hard hat complete PAPR with particlate Filter

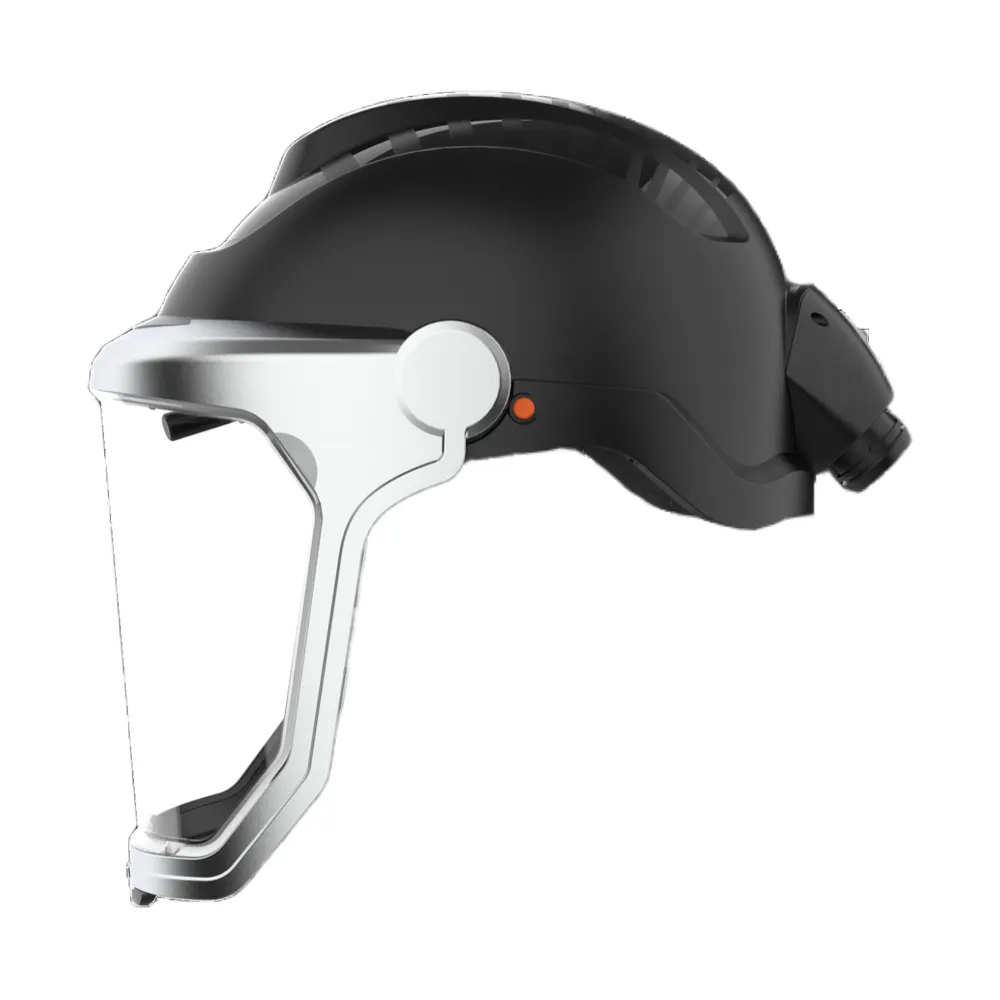

Top Class Hard Hat

Developed based on the personal safety protective hard hat,antiimpact & shock resistance made of reinforced nylon, provide extra safety protection.

Detachable Flip-Up Face Cover

Most popular design at the moment

LED Light

Optional head spotlight

Super Large View

Curved 360° lens

Built-in Airduct

Adjustable direction inner air outlet to deliver fresh air conttinuously to prevent from unexpected accidents such as syncope, palpitation or sunstroke. Also can help anti-fogging of the screen.

Download the PDF

TECHNICAL CHARACTERISTICS

Airflow Velocity 170L/MIN, 200L/MIN, 230L/MIN

System Automatic detecting and controlling; system provides constantly stable clean air

Switch 3 levels of airflow control; On/off switch; Automatic shutting down if unused for 30 mins

Warning Airflow level and data; Filter loading status; Battery life

Warning Low battery; Jammed filter; Airflow jammed causing low airflow; High battery temperature

Working Noise Max.73dB

High Filter Efficiency 99.996%@0.185um

Filtration Level TH3 PRSL

Weight Complete unit 1370g

Battery Operating Time Standard Battery: Level 1:>10h, Level2:>8h, Level3:>6h; Heavy Duty Battery(Optional): Level 1:>15h, Level2:>12h, Level 3:>10h

Charging Time Standard Battery 3.5h; Heavy Duty Battery 5h

Charging Frequency ≥500

Operating Temperature -5°C~+55°C

Certificates CEEN12941.1998+A2:2008

Approved NIOSH 42 CFRPart 84 Approval Number: TC-21C-1118 TC-21C-1162

Carbon Odor filter(Optional)

Carbon Odor filter removes

unpleasant odors in the work

environment.

A pre-filter and HE particle filter

must be used at all times when

using PR03.

Gas Filter(Optional)

The gas filter offers A1B1E1K1

protection against harmful gas,

such as organic vpors or acid

gases, which help secure breathe

of the users working in severely

polluted or chemical toxic

environments.

APackage Includes

Air Filter	Blower Unit	Waist Belt	Battery Charger	Standard Battery	Air Flow Tester
Particle Filter(P3)	Filter Cover	High End Flexible Hose	Carrier Bag	Pre-filter Spark	Face Seal

Packaging Method

First

Place the product into the portable
inner box and reinforce it with foam.

Then

Put portable inner box into the
reinforced individual outer carton.
