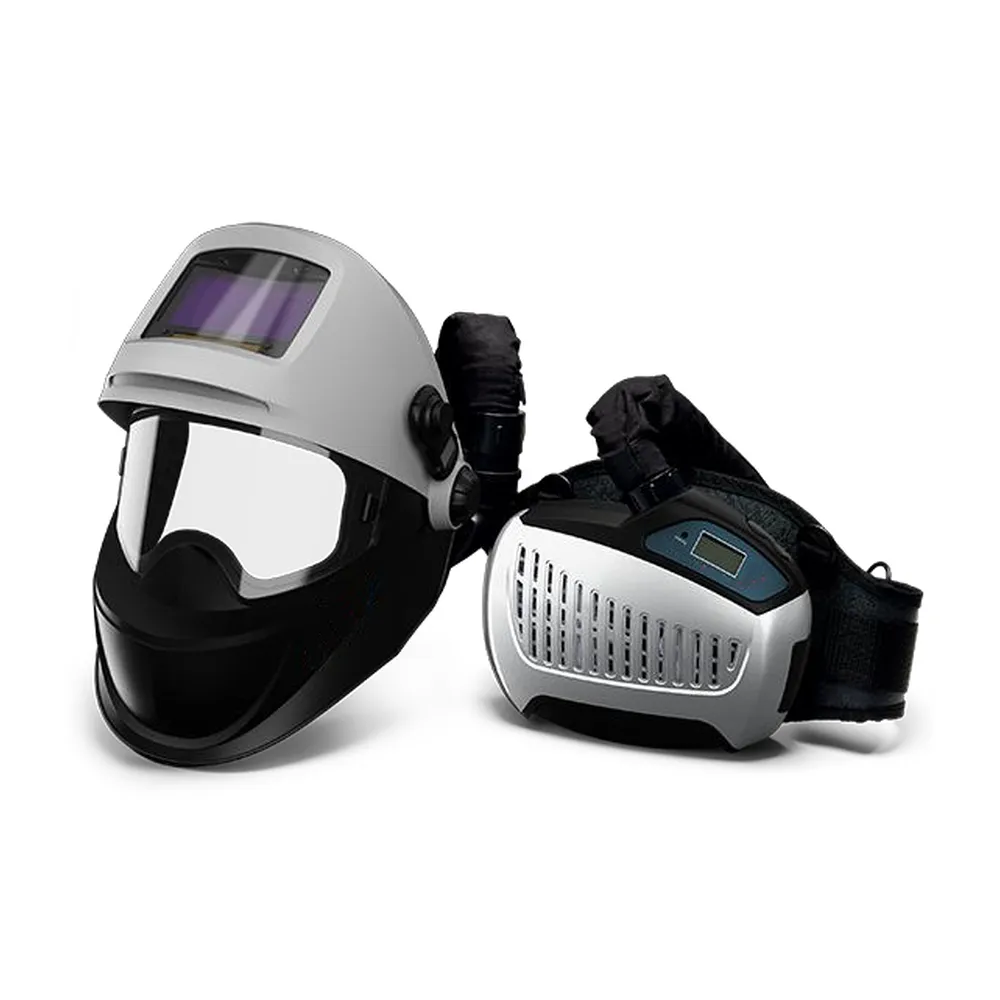

UN9100E

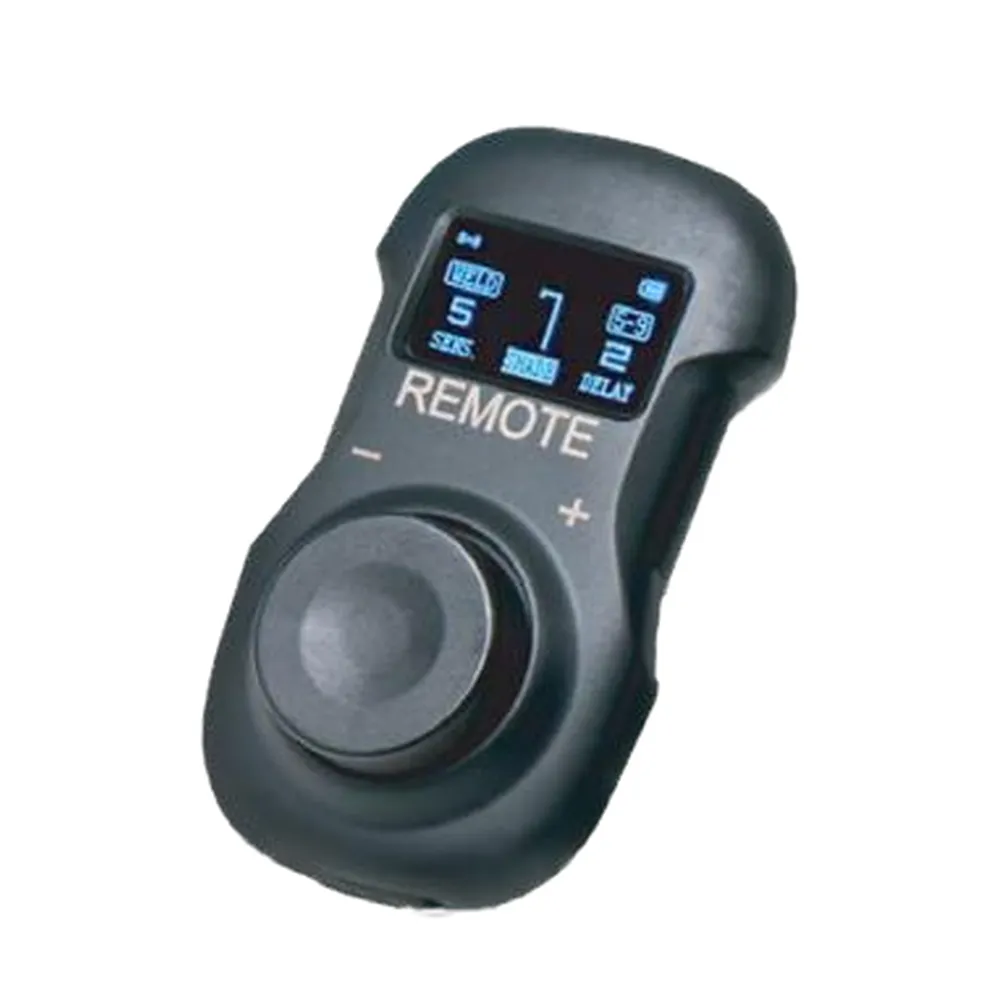

User-friendly remote design with Bluetooth interface and OLED display multi-featured interface menus provide easy and qulick ADF settings. The remote can either be locked on a helmet or talken off.

Download the PDF

TECHNICAL CHARACTERISTICS

Model SPARX-II

Filter Dimension 122*120*8.8mm (4.80"x4.72")

View Size 110x75mm(4.33"x2.95")

CE Classification 1/1/1/1

Sensors 4

Light State Shade3

Dark State Variable shade 5-9/9-13

Shade Control Digital control(Optional Remote and Smart APP Control)

Switching Time 0.04ms (ANSI)

Sensitivity Control Adjustable (Level 1-Level 5 for Low-high)

Delay Time Control Adjustable (Level 1-Level 5 for 0.1-0.9s)

Grinding Function Yes, remote & Digital control

Low Battery Warning Indicator Yes

Operation Temperature -15°C-65°C(-59°F-149°F)

Storing Temperature -25°C-85°C(-77°F-185°F)

Power Supply Solar cell, replaceable battery (CR2450*1PC)

Minimum TIG Welding Current 2A

Respirator Parameters

Airflow Velocity 170L/MIN, 200L/MIN, 230L/MIN

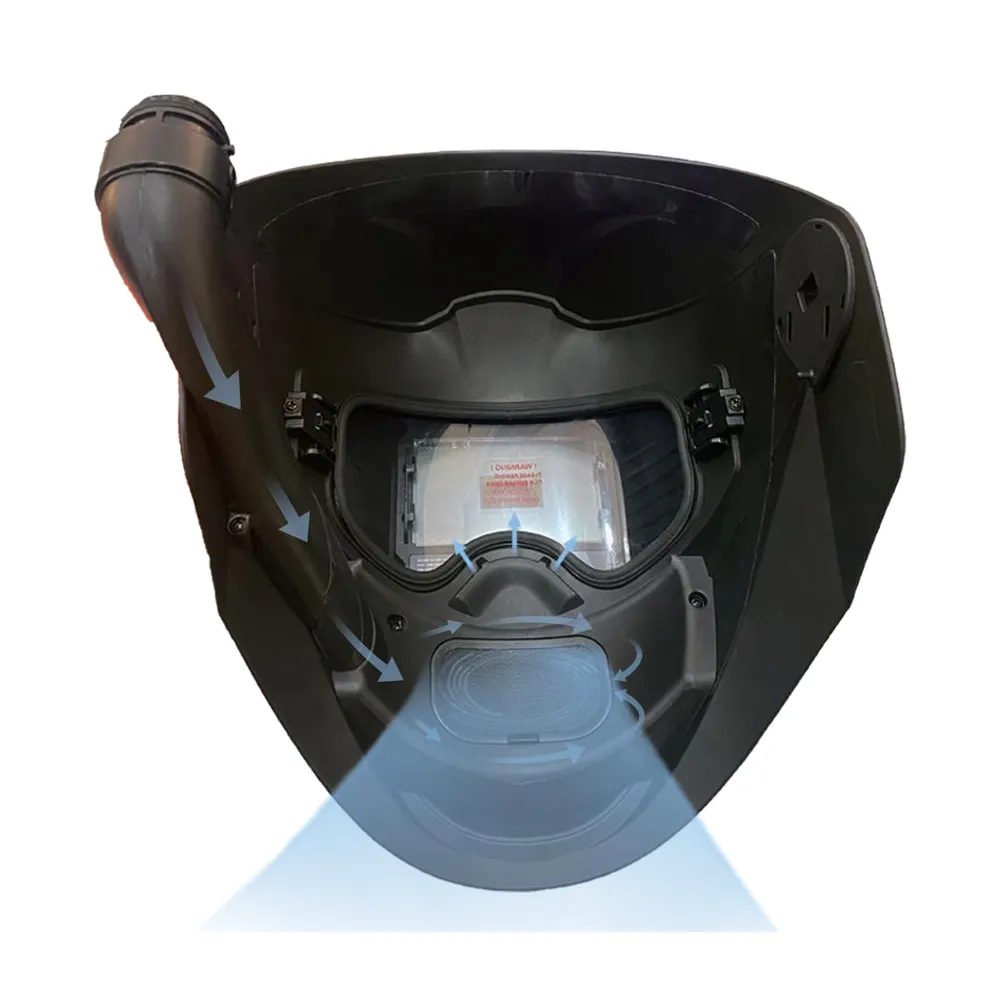

System Automatic detecting and controlling; system provides constantly stable clean air

Switch 3 levels of airflow control; On/off switch; Automatic shutting down if unused for 30 mins

Warning Airflow level and data; Filter loading status; Battery life

Warning Low battery; Jammed filter; Airflow jammed causing low airflow; High battery temperature

Working Noise Max.73dB

High Filter Efficiency 99.996%@0.185um

Filtration Level TH3 PRSL

Weight Complete unit 1370g

Battery Operating Time Standard Battery: Level 1:>10h, Level2:>8h, Level3:>6h; Heavy Duty Battery(Optional): Level 1:>15h, Level2:>12h, Level 3:>10h

Charging Time Standard Battery 3.5h; Heavy Duty Battery 5h

Charging Frequency ≥500

Operating Temperature -5°C~+55°C

Certificates CEEN12941.1998+A2:2008

Approved NIOSH 42 CFRPart 84 Approval Number: TC-21C-1118 TC-21C-1162

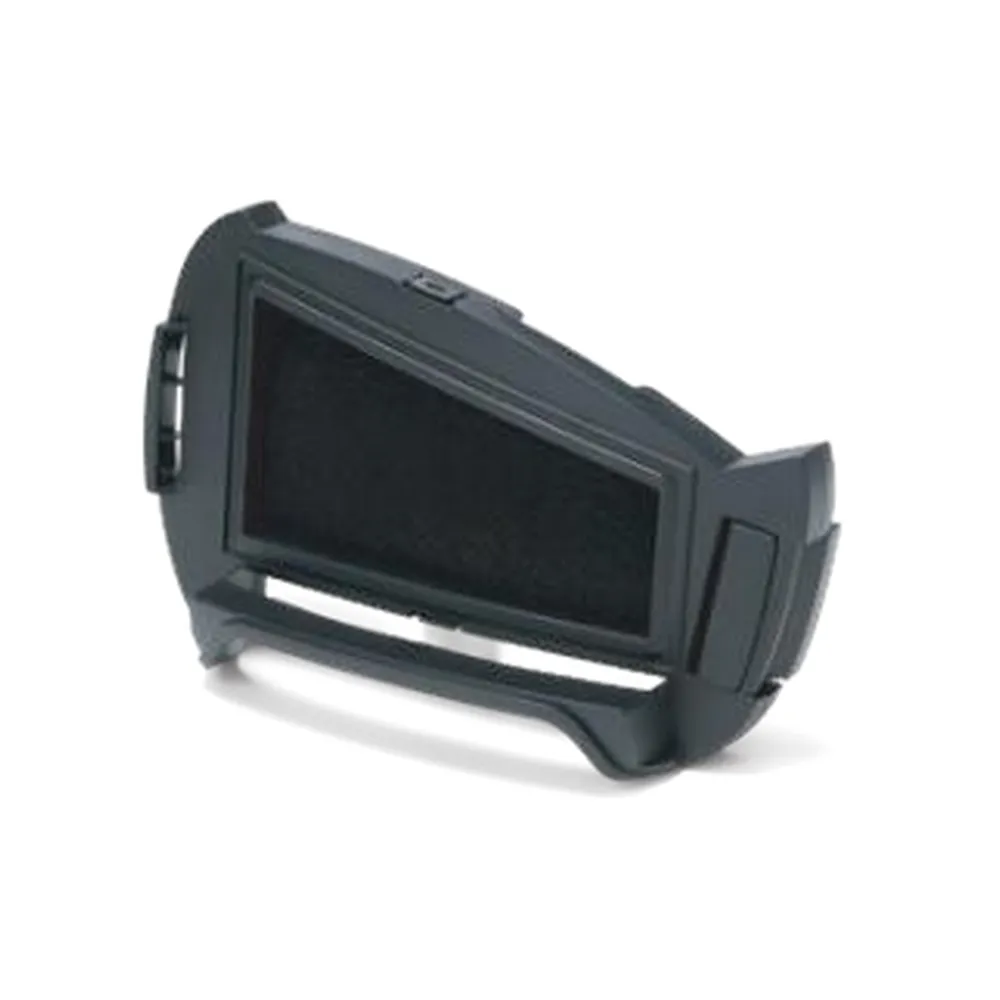

Carbon Odor filter(Optional)

Carbon Odor filter removes

unpleasant odors in the work

environment.

A pre-filter and HE particle filter

must be used at all times when

using PR03.

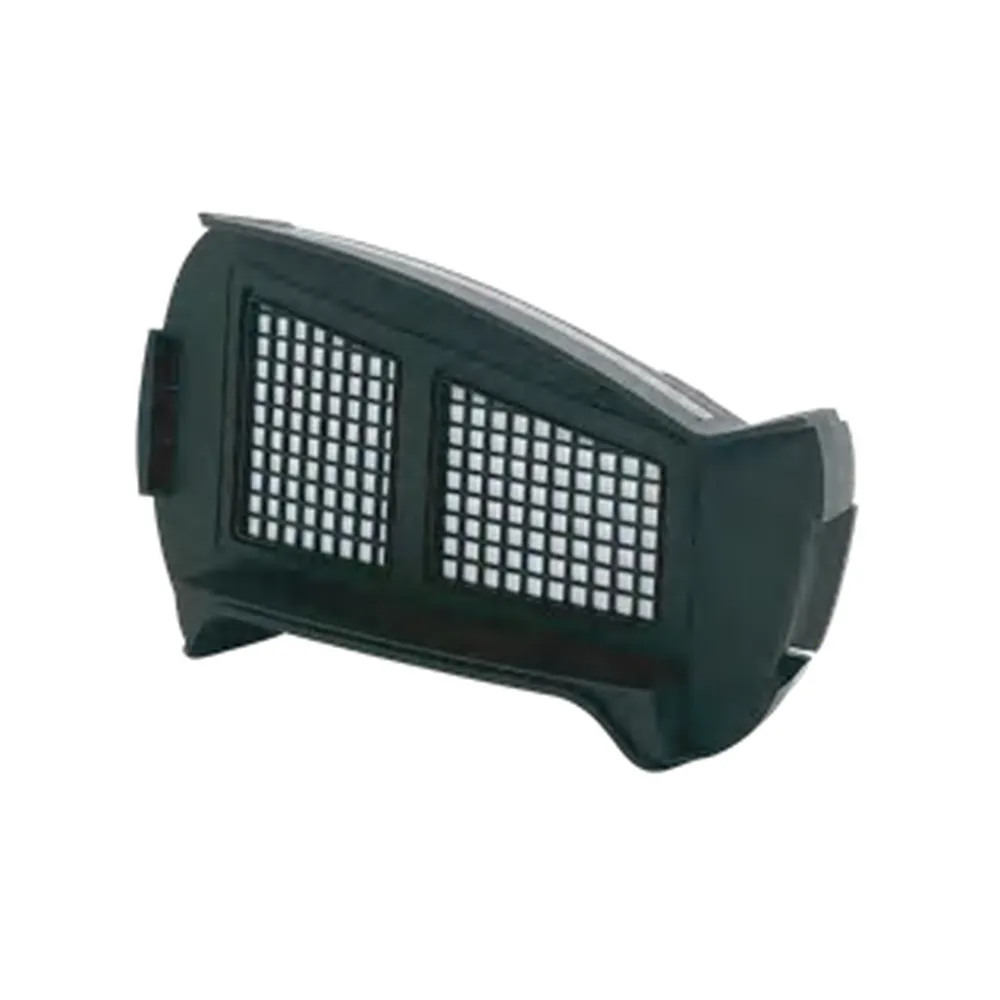

Gas Filter(Optional)

The gas filter offers A1B1E1K1

protection against harmful gas,

such as organic vpors or acid

gases, which help secure breathe

of the users working in severely

polluted or chemical toxic

environments.

APackage Includes

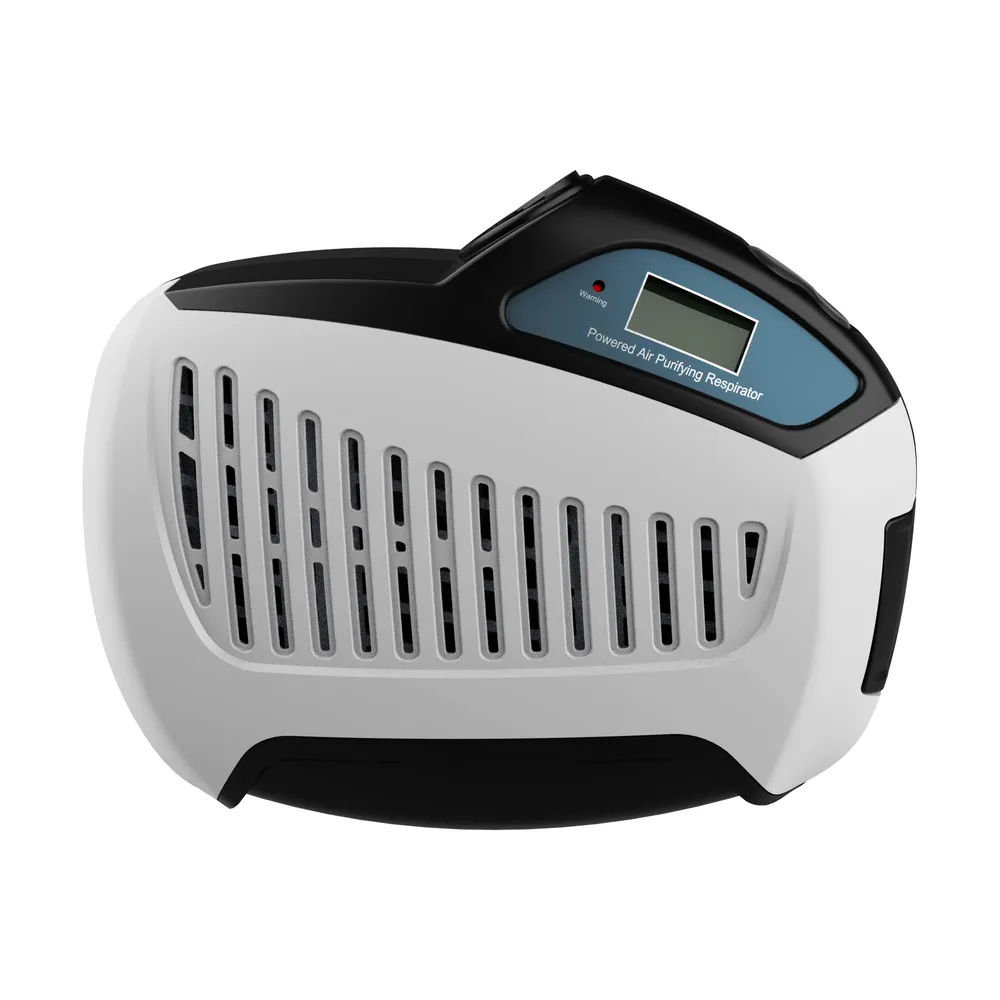

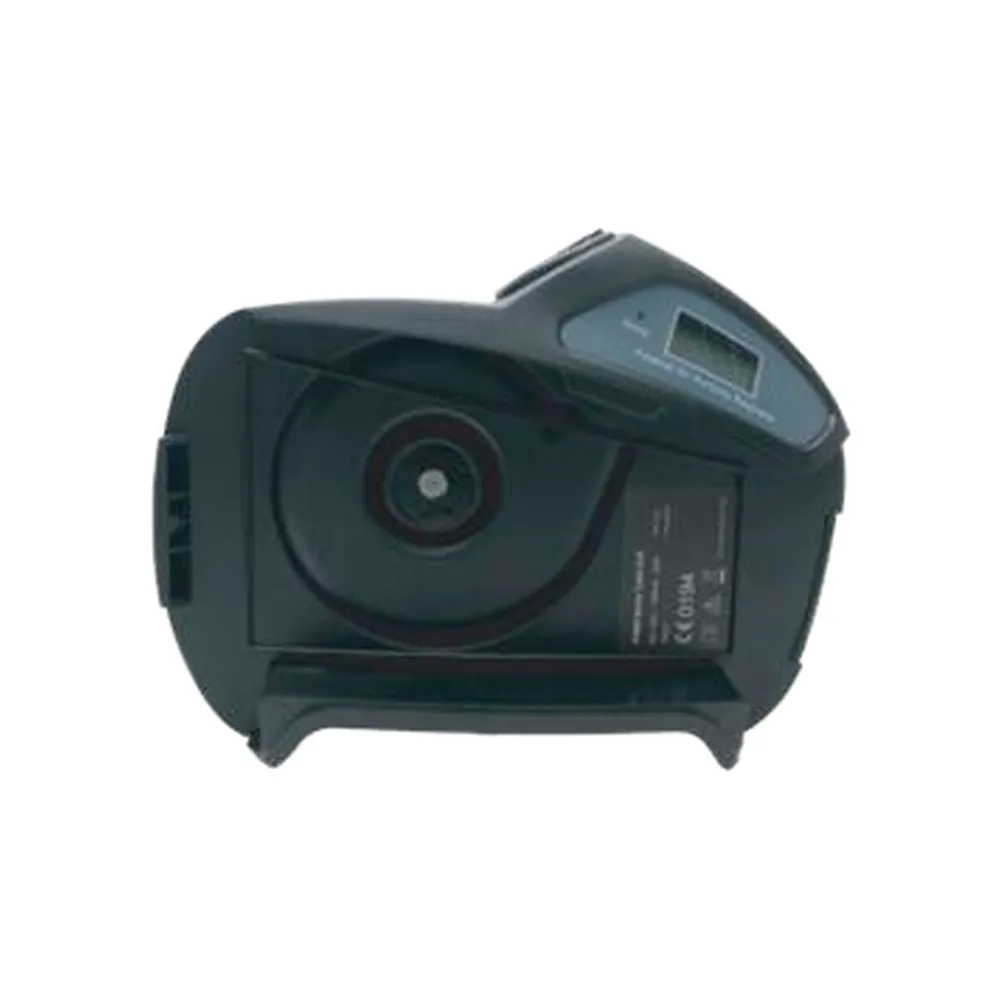

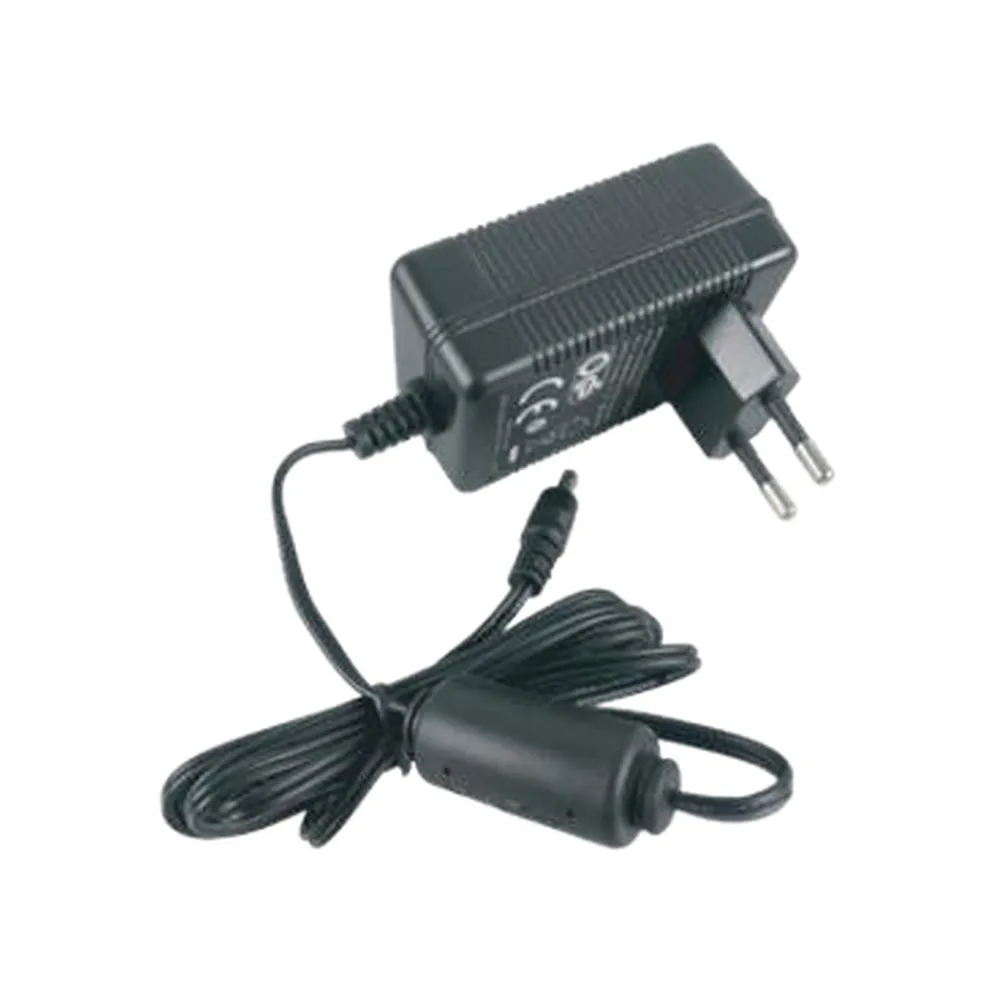

Air Filter	Blower Unit	Waist Belt	Battery Charger	Standard Battery	Air Flow Tester

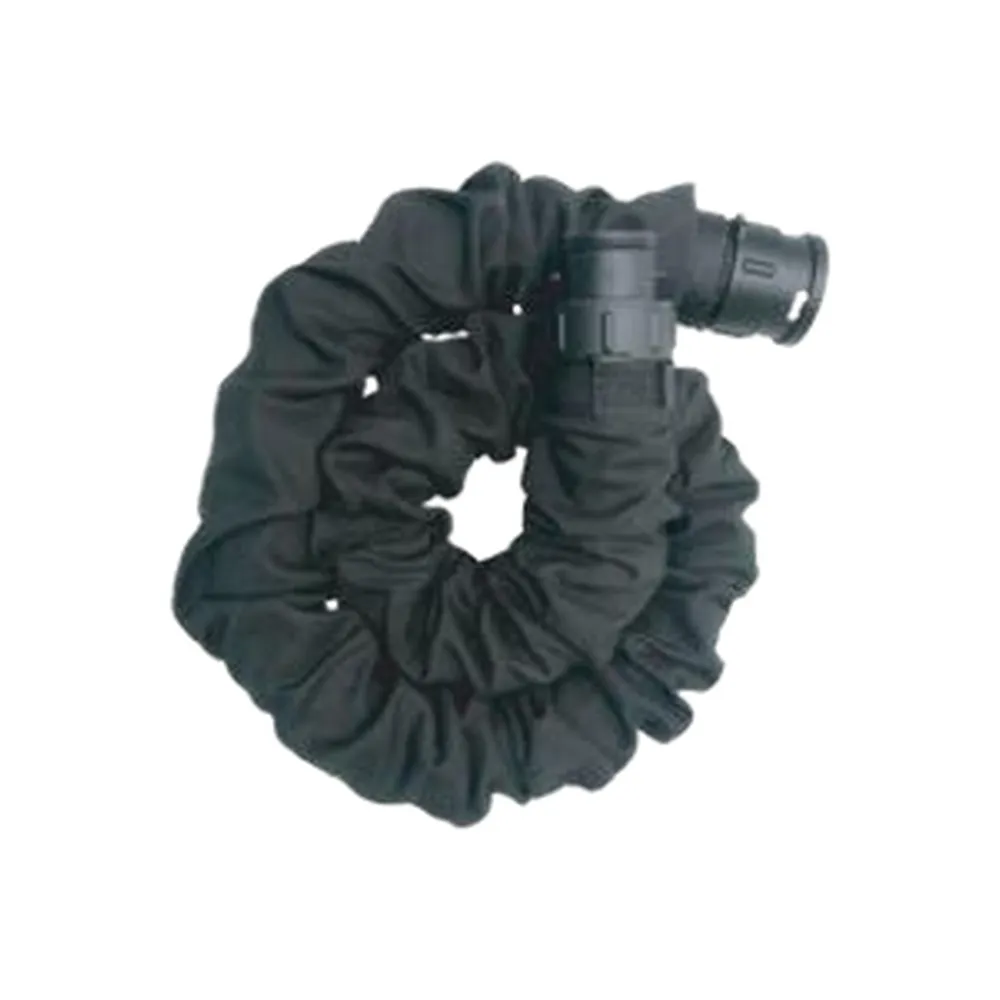

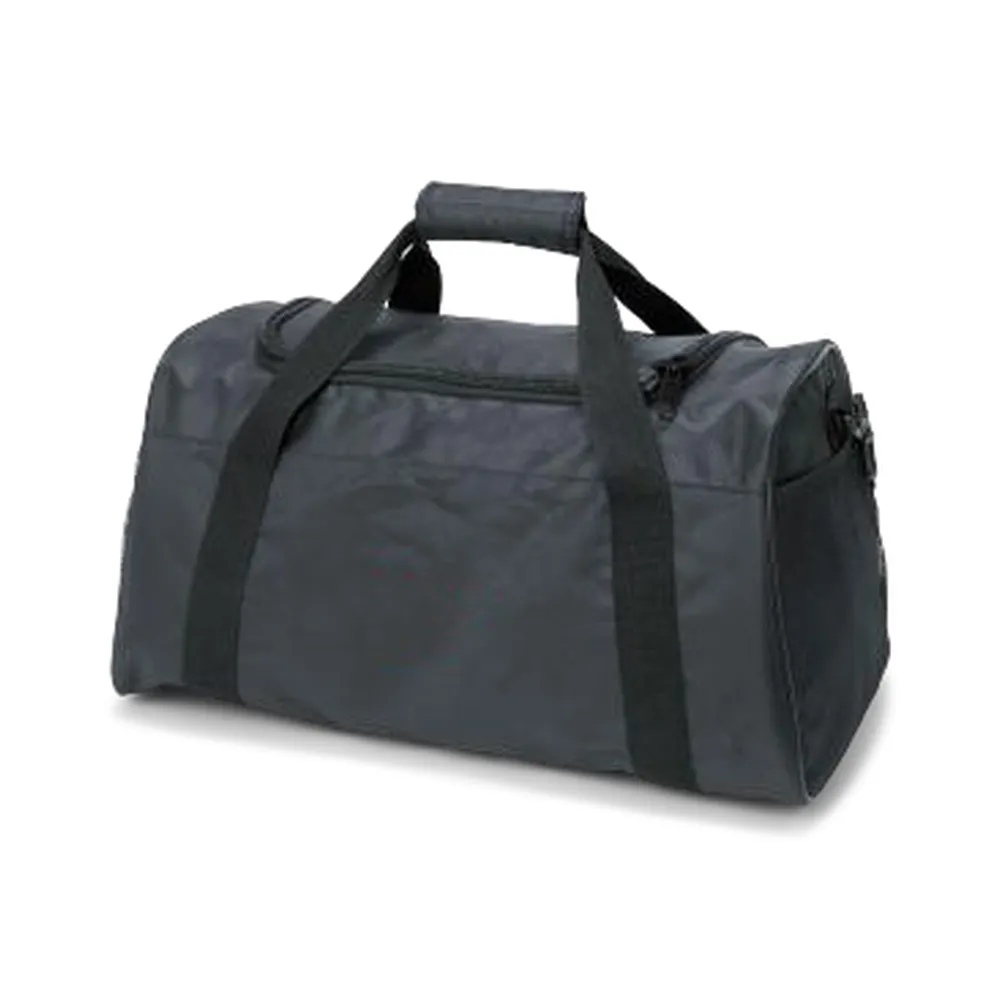

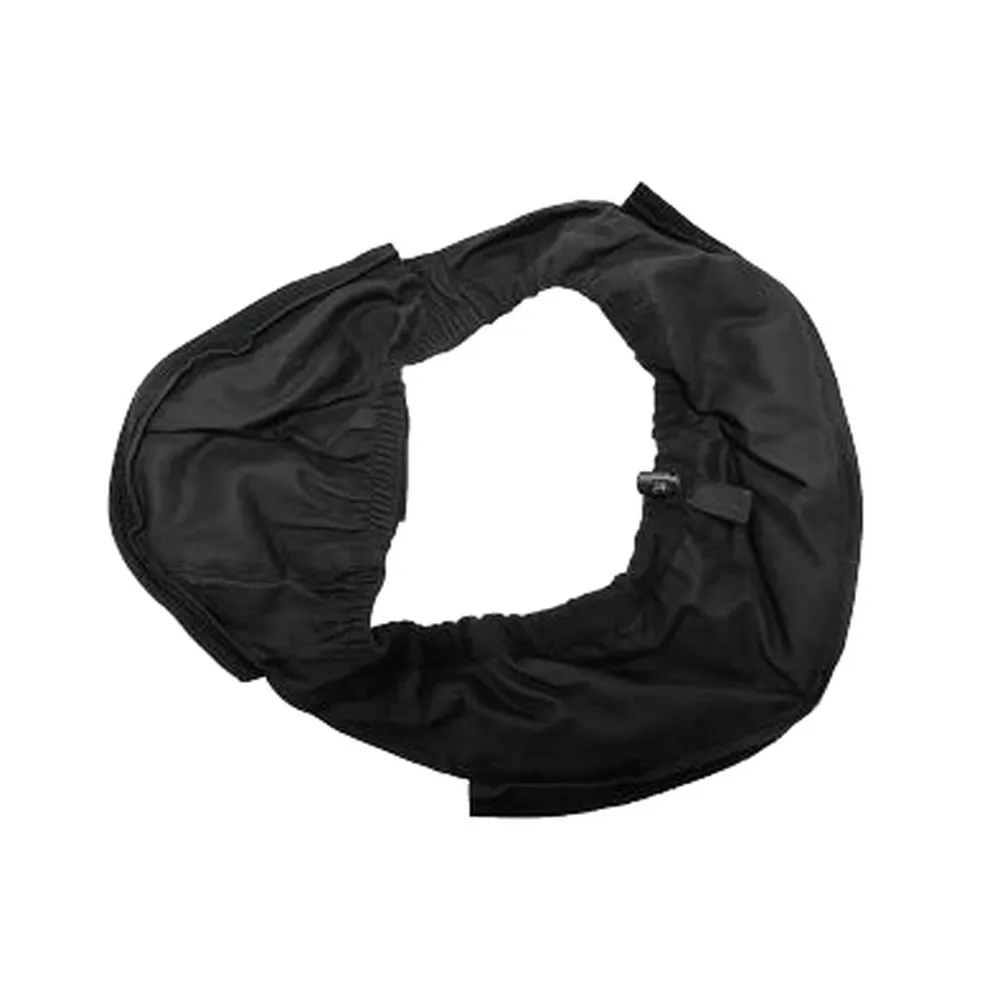

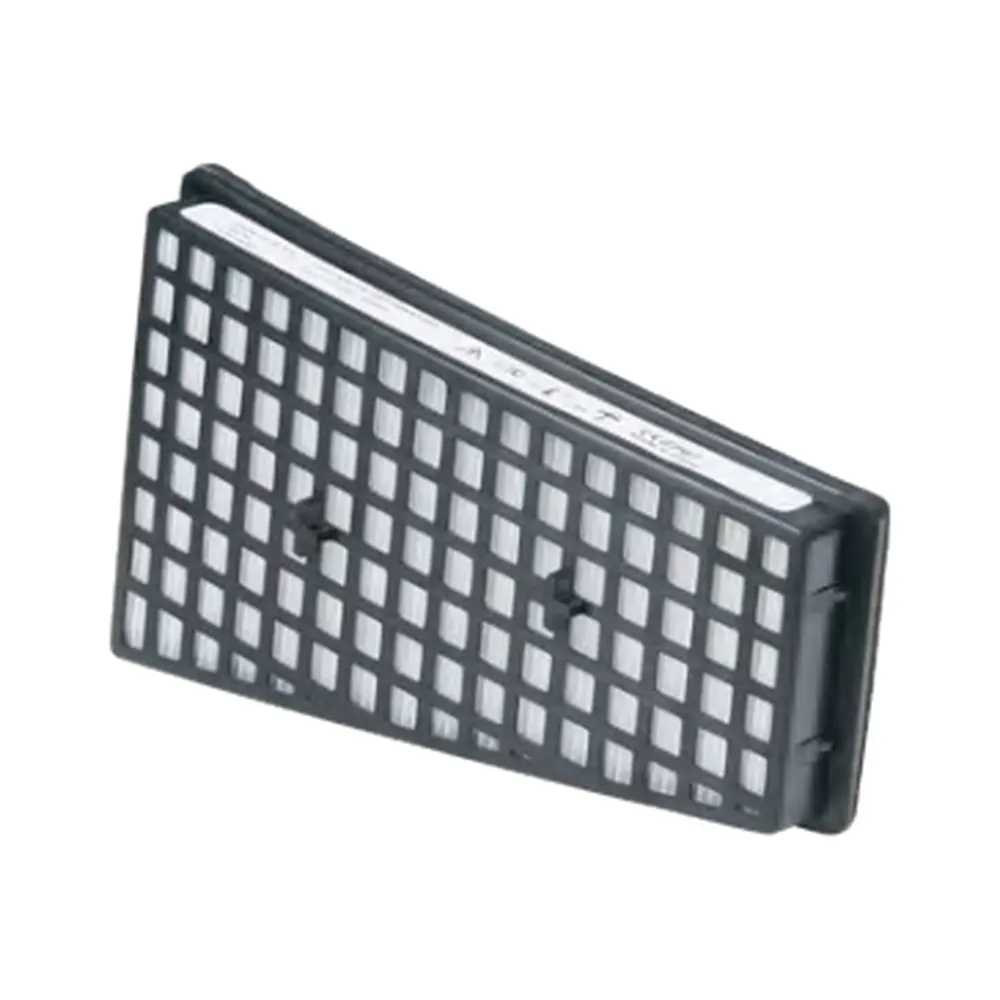

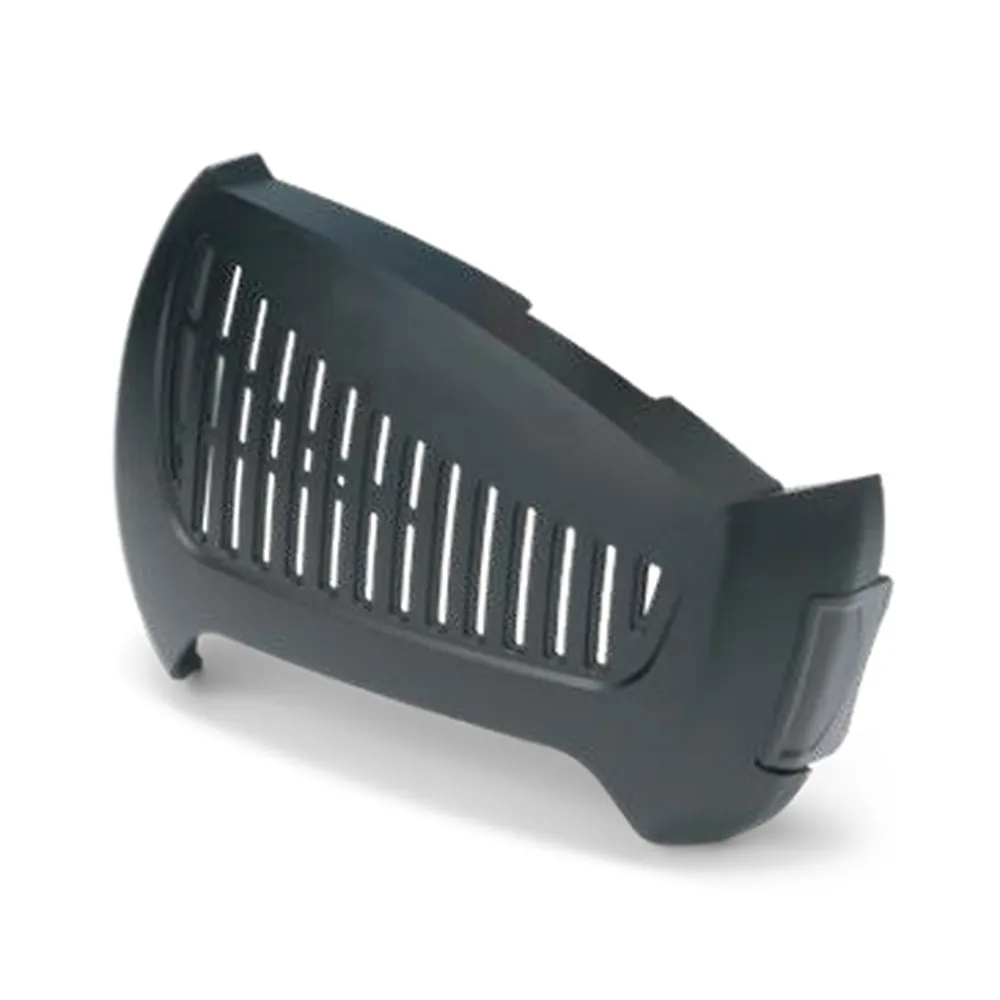

Particle Filter(P3)	Filter Cover	High End Flexible Hose	Carrier Bag	Pre-filter Spark	Face Seal

Packaging Method

First

Place the product into the portable
inner box and reinforce it with foam.

Then

Put portable inner box into the
reinforced individual outer carton.
