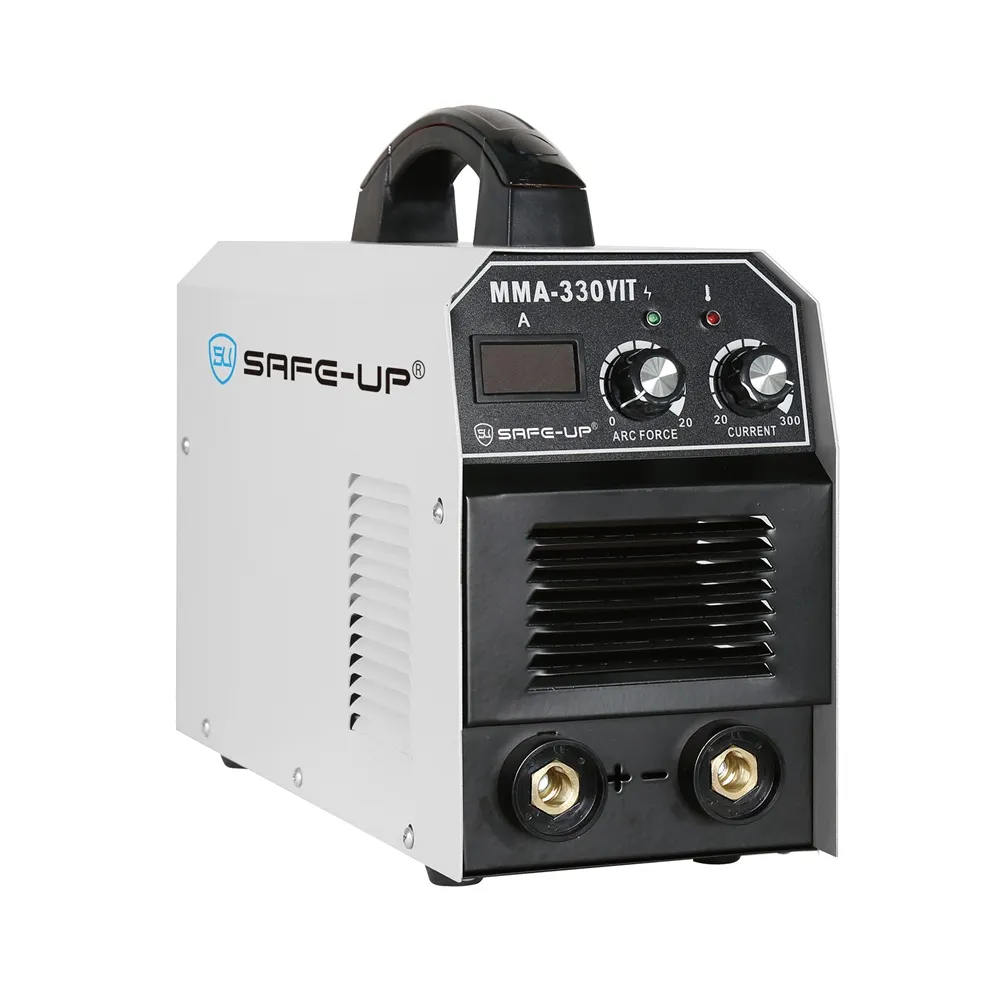

UNMMA-330YIT

INVERTER MMA WELDING MACHINE
UNMMA-330YIT

The machines are fan cooled, 2PCBS design,IGBT based inverter controlled power sources meant for MMA / TIG (scratch start)welding. The machine automatically provides operators with the optimal start and stop parameters based on the set welding current. A booster circut provides additional voltage for superior cellulosic arc starts and welding performance.


Download the PDF
Technical Data
ParameterUNMMA-330YITUNMMA-350YIT
Mains Voltage (V)220220
Frequency (HZ)50/6050/60
No-load Voltage (V)6565
Rated Input Capacity (KVA)14.015.0
Insulation ClassFF
Output Current (A)20-33020-350
Rated Duty Cycle (%)6060
Dimensions (CM)40*16*2740*16*27
Weight (KG)8.08.5


Hot Start

Optimizes arc ignition performance for hard‑to‑strike welding electrodes.


Arc Force

Adjustable to select optimal dynamic characteristics of welding arc.


Anti Stick

Automatically lowers current for quick release when electrode sticks to workpiece.


Temperature Protection

Intelligent thermal protection prevents machine damage caused by overheating.


Fan Cooling

Efficient cooling system accelerates heat dissipation and extends service life.


Overvoltage Protection

Safeguards internal components against unstable input voltage surges.


High Efficiency

High conversion rate, less power loss and improves welding working performance.


Intelligent Energy‑Saving

Low idle power consumption, improves energy efficiency during long working hours.

Packaging Method

A

individual packing，6pcs/ctn

A
B

individual packing，6pcs/ctn

B
