MMA Welding:Supports stable MMA welding with strong arc penetration for everyday metal tasks.
ARC FORCE:Arc Force automatically optimizes current during short-arc welding to prevent stickiness and spatter.
TIG Welding:Enables clean and precise TIG welding for fine sheet metal and detailed aesthetic welds.
CE Certificate:CE certified to guarantee high standards of safety, quality, and operational reliability.
Hot Start:Hot Start provides an instant current boost for effortless arc ignition without electrode sticking.
ANTI-STICK:Anti-Stick automatically reduces output power when an electrode freezes, allowing quick removal.
VRD is short for Voltage Reduction Device:Built-in VRD reduces open-circuit voltage when idling to prevent electric shock and ensure user safety.
Designs:

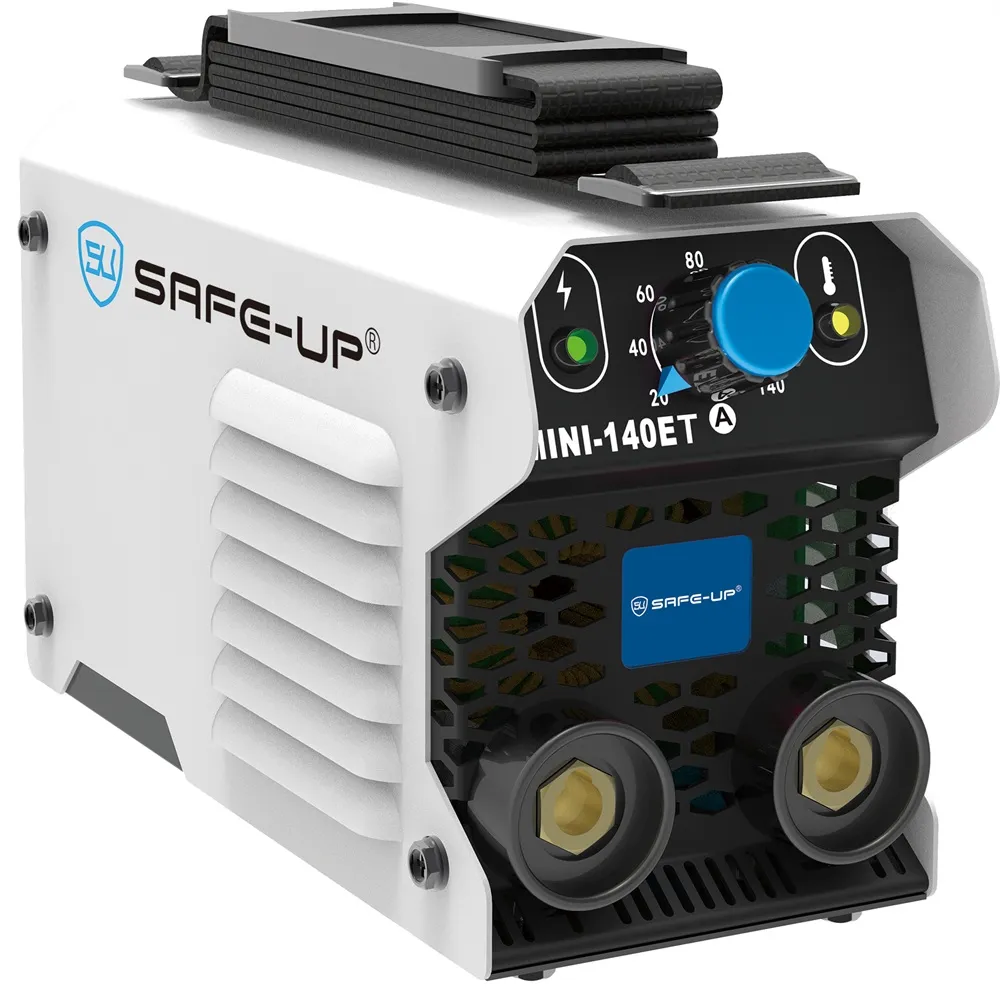

| Parameter | UNSMINI-100ET | UNSMINI-120ET | UNSMINI-140ET |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 56 | 56 | 56 |
| Rated Input Capacity (KVA) | 4.5 | 5.0 | 5.5 |
| Insulation Class | F | F | F |
| Output Current (A) | 20-100 | 20-120 | 20-140 |
| Rated Duty Cycle (%) | 35 | 35 | 35 |
| Dimensions (CM) | 23*10*15.5 | 23*10*15.5 | 23*10*15.5 |
| Weight (KG) | 1.9 | 2.0 | 2.0 |

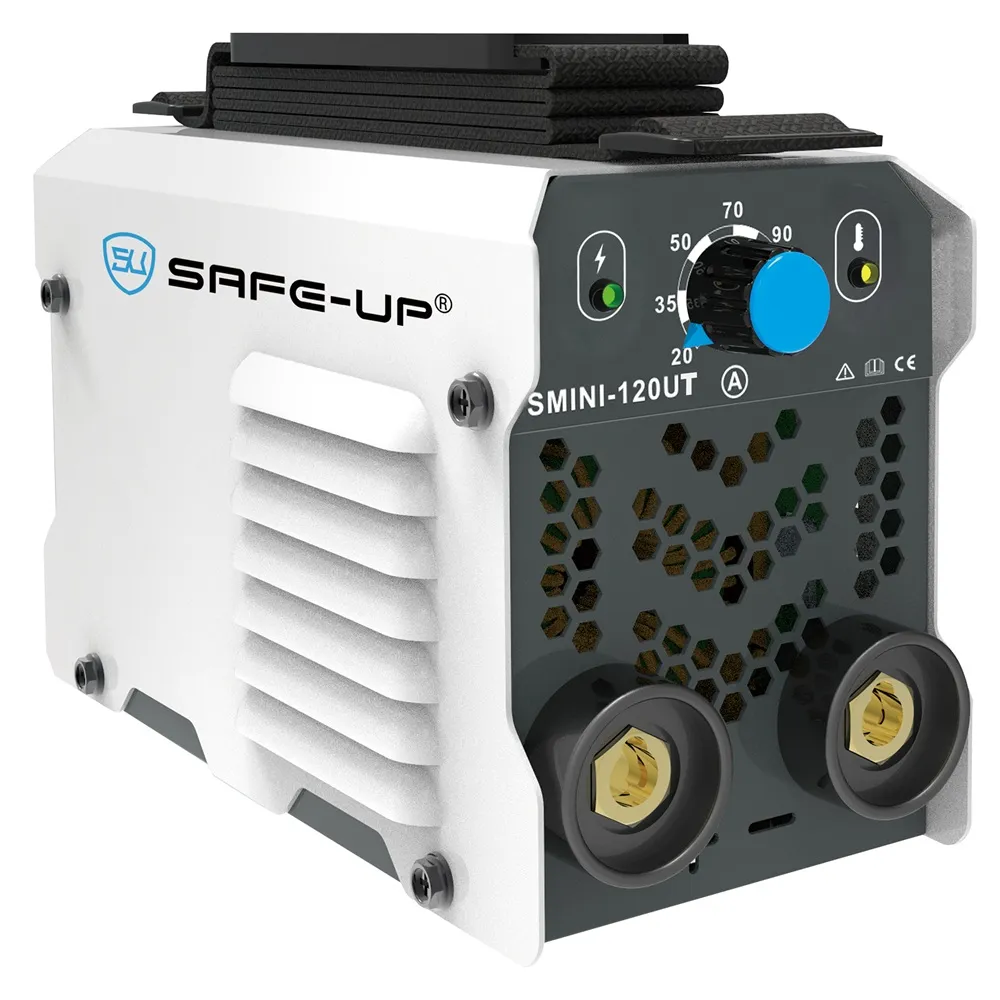

| Parameter | UNSMINI-100UT | UNSMINI-120UT | UNSMINI-140UT |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 56 | 56 | 56 |
| Rated Input Capacity (KVA) | 4.5 | 5.0 | 5.5 |
| Insulation Class | F | F | F |
| Output Current (A) | 20-100 | 20-120 | 20-140 |
| Rated Duty Cycle (%) | 35 | 35 | 35 |
| Dimensions (CM) | 23*10*15.5 | 23*10*15.5 | 23*10*15.5 |
| Weight (KG) | 1.9 | 2.0 | 2.0 |

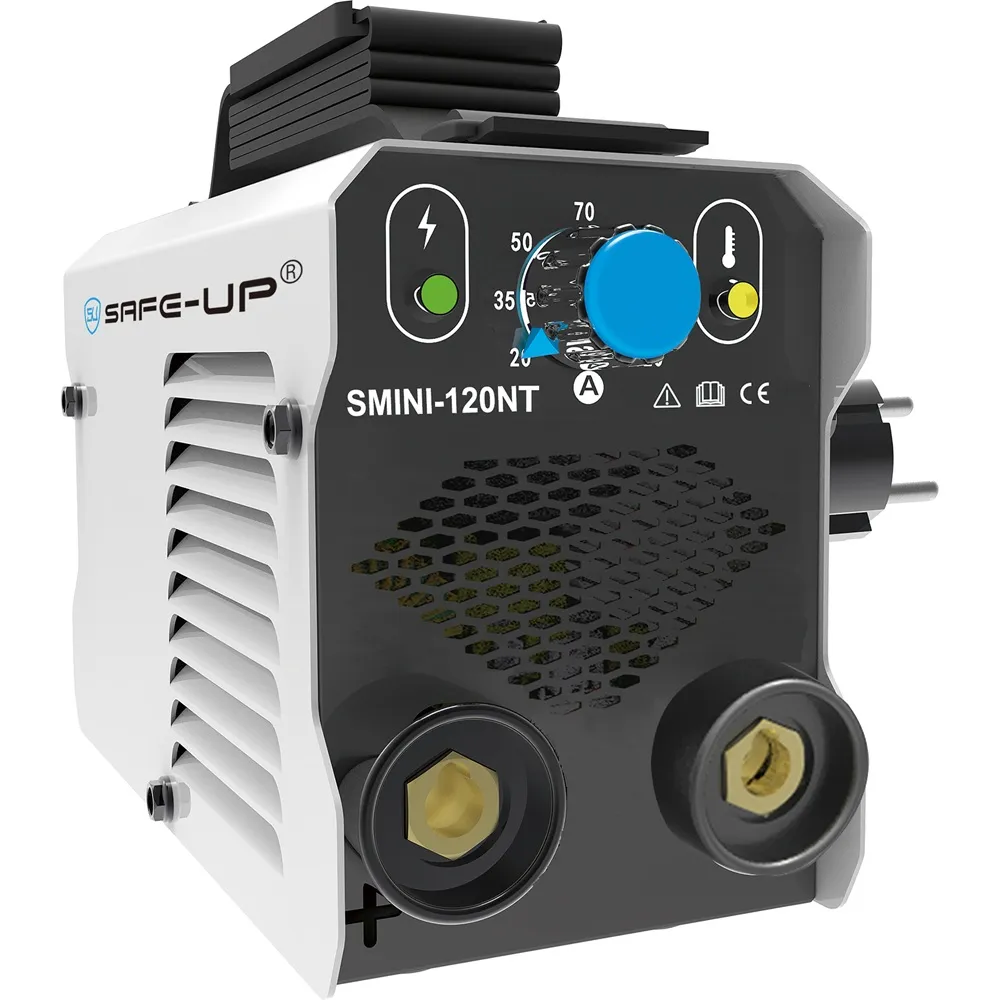

| Parameter | UNSMINI-100NT | UNSMINI-120NT | UNSMINI-140NT |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 56 | 56 | 56 |
| Rated Input Capacity (KVA) | 4.5 | 5.0 | 5.5 |
| Insulation Class | F | F | F |
| Output Current (A) | 20-100 | 20-120 | 20-140 |
| Rated Duty Cycle (%) | 35 | 35 | 35 |
| Dimensions (CM) | 23*10*15.5 | 23*10*15.5 | 23*10*15.5 |
| Weight (KG) | 1.9 | 2.0 | 2.0 |
Optimizes arc ignition performance for hard‑to‑strike welding electrodes.
Adjustable to select optimal dynamic characteristics of welding arc.
Automatically lowers current for quick release when electrode sticks to workpiece.
Intelligent thermal protection prevents machine damage caused by overheating.
Efficient cooling system accelerates heat dissipation and extends service life.
Safeguards internal components against unstable input voltage surges.
Compact lightweight structure, easy to carry and suitable for outdoor operation.
Low idle power consumption, improves energy efficiency during long working hours.
individual packing，6pcs/ctn
individual packing，6pcs/ctn
