Plasma Cutting Performance:The narrow plasma arc enables high-speed, low-cost cutting that is four times faster than traditional gas cutting
High Precision Cutting:Delivers sharp-edged, distortion-free cuts across all kinds of metal with minimum dross and superior surface finish
High Frequency IGBT Design:Utilizes high-frequency IGBT technology to eliminate electromagnetic interference for more stable operation and reliable performance
Non-Contact Arc Starting:Features non-contact arc ignition to allow smooth starting without directly touching the torch to the workpiece
Advanced Gas Flow Control:Includes automatic gas post-flow and adjustable post-gas settings to ensure optimal torch cooling and extended consumable life
Comprehensive Safety Protections:Provides full operator safety through built-in torch protection cycles, LED indicators, and elimination of dangerous combustible gases
Smart & Ergonomic Design:Engineered with an intuitive front panel featuring an air pressure manometer, PWM control, low energy consumption, and a robust chassis
Designs:

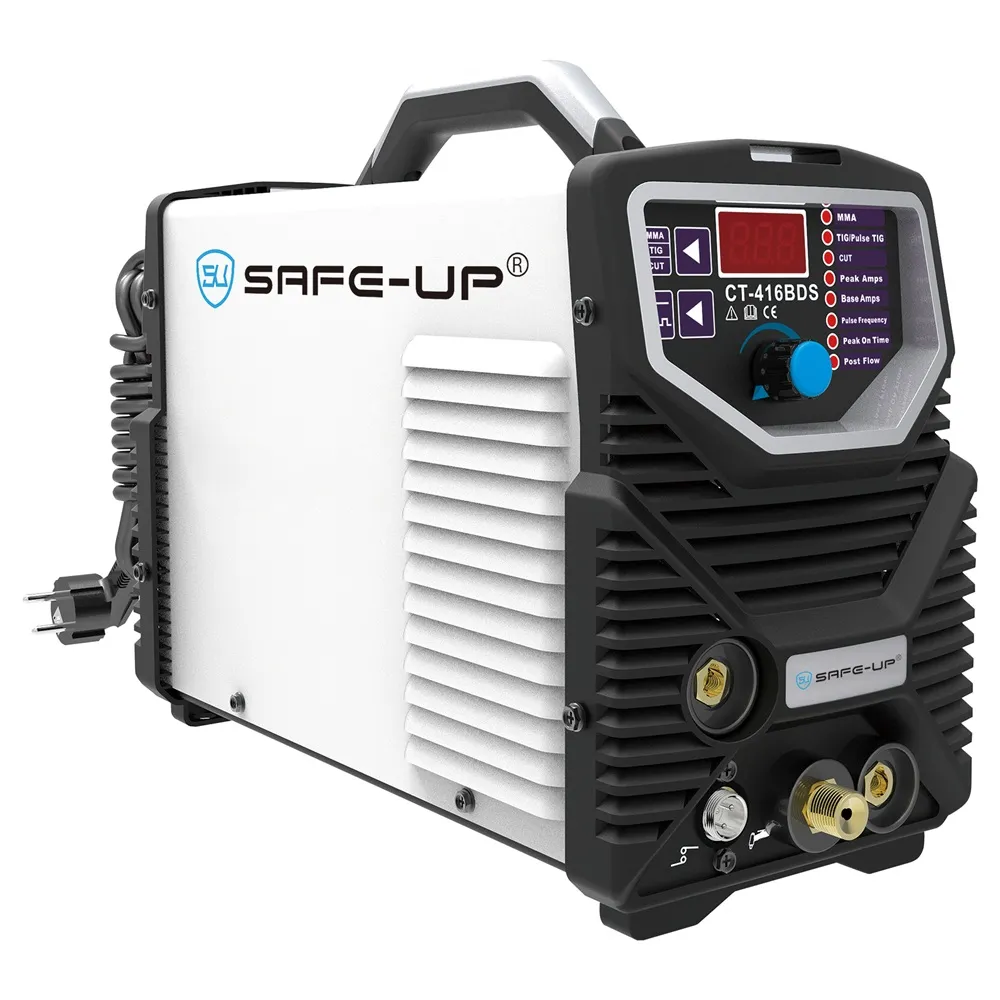

| Parameter | UNCT-416BDS | UNCT-518BDS |
| Mains Voltage (V) | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 60 | 60 |
| Rated Input Capacity (KVA) | 6.6 | 7.0 |
| Cutting Thickness (MM) | ≤15 | ≤18 |
| Output Current (A) | 20-160 | 20-180 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 40*16*32 | 40*16*32 |
| Weight (KG) | 9.0 | 9.5 |

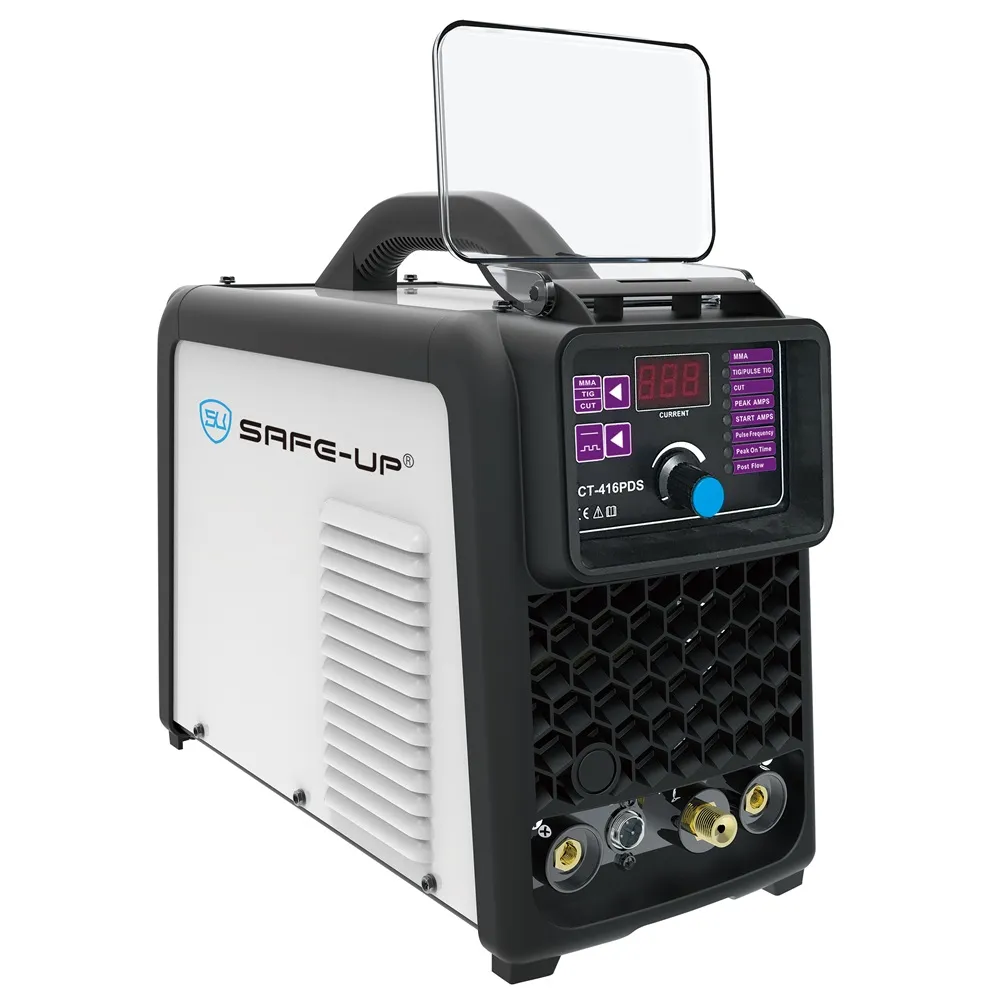

| Parameter | UNCT-416PDS | UNCT-518PDS |
| Mains Voltage (V) | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 60 | 60 |
| Rated Input Capacity (KVA) | 6.6 | 7.0 |
| Cutting Thickness (MM) | ≤15 | ≤18 |
| Output Current (A) | 20-160 | 20-180 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 41*19.5*34 | 41*19.5*34 |
| Weight (KG) | 10.0 | 10.5 |

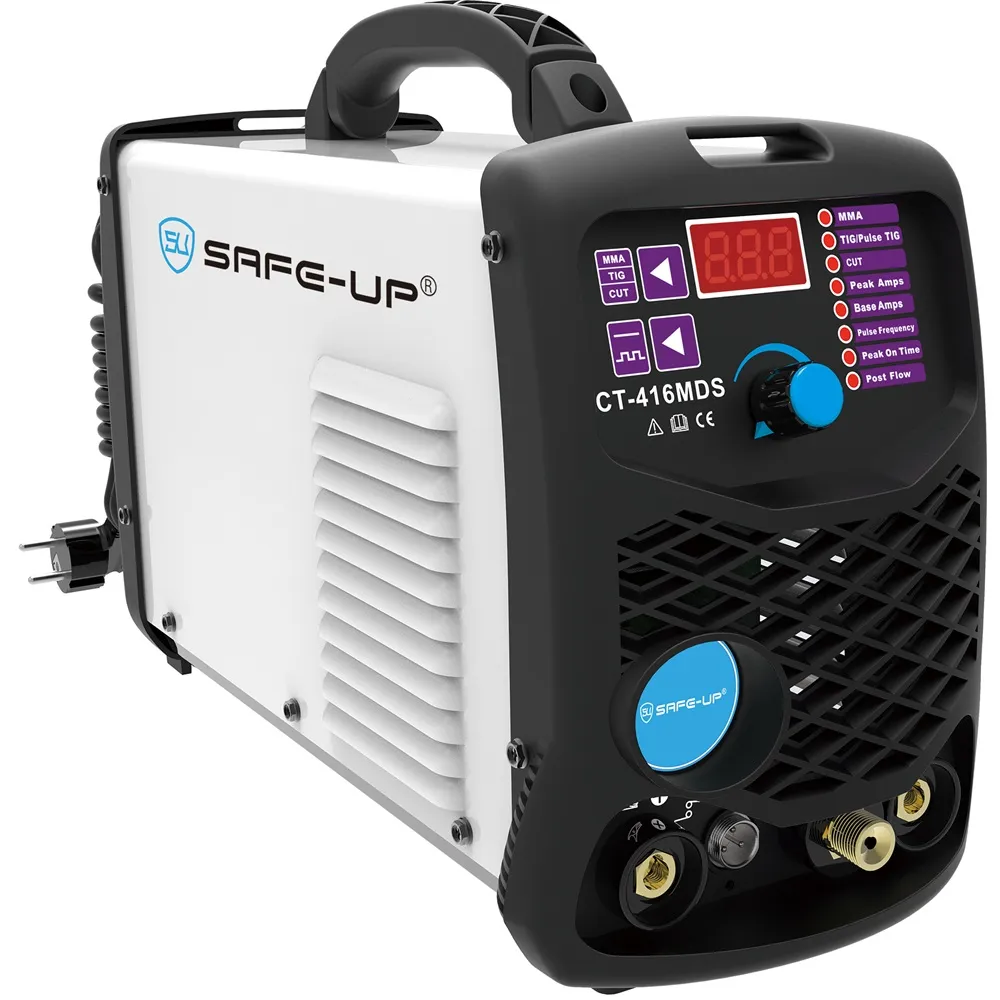

| Parameter | UNCT-416MDS | UNCT-518MDS |
| Mains Voltage (V) | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 60 | 60 |
| Rated Input Capacity (KVA) | 6.6 | 7.0 |
| Cutting Thickness (MM) | ≤15 | ≤18 |
| Output Current (A) | 20-160 | 20-180 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 40*16*32 | 40*16*32 |
| Weight (KG) | 9.0 | 9.5 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
