When air supplied after electric arc proceed between edge of electrode and base metal, the air through the arc current becomes ionized by chemical processing and divided into eIectronic & positive ion, mixed high temperature jet gas.Thus, we call the gas as Plasma and with this. the Plasma Cutter is invented.
Designs:

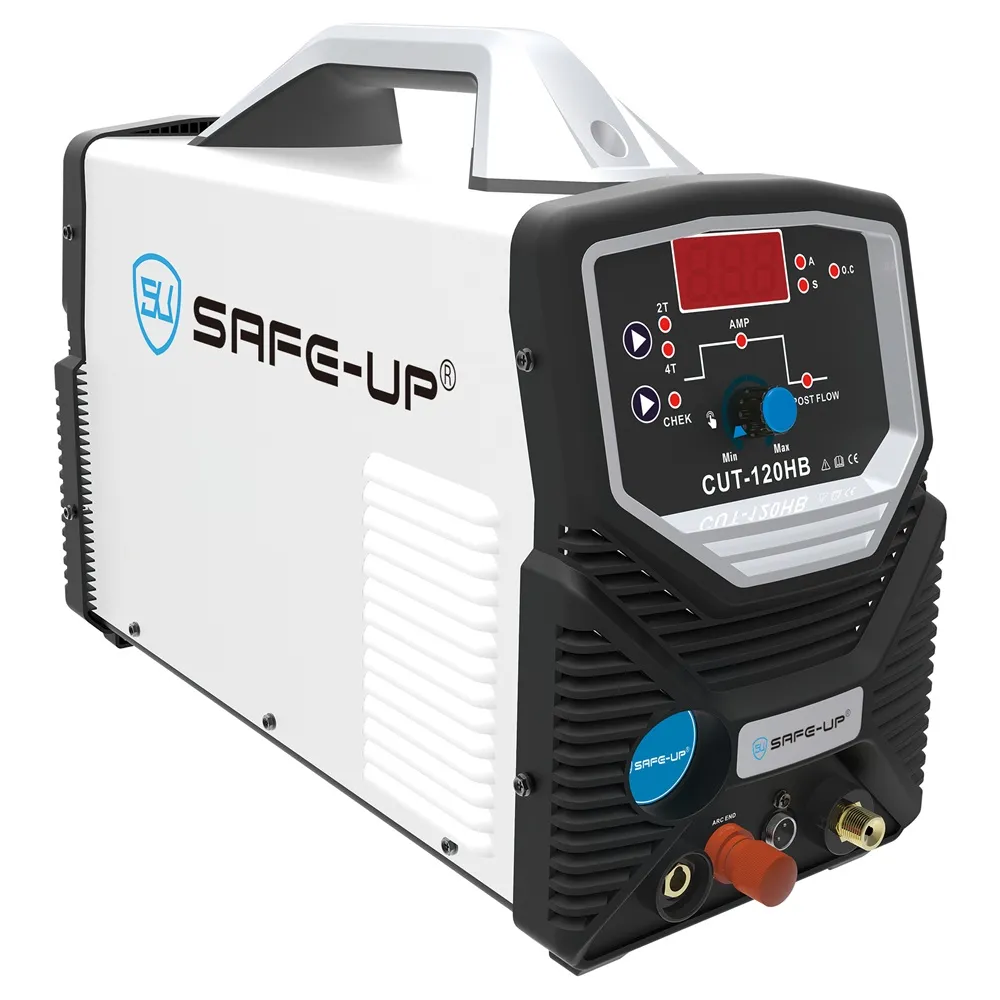

| Parameter | UNCUT-70HB | UNCUT-100HB | UNCUT-120HB |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 270 | 300 | 300 |
| Rated Input Capacity (KVA) | 8.0 | 15 | 19 |
| Cutting Thickness (MM) | ≤25 | ≤35 | ≤40 |
| Output Current (A) | 20-70 | 20-70 | 20-120 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 | 52*23*39 |
| Weight (KG) | 14.0 | 14.0 | 15.0 |

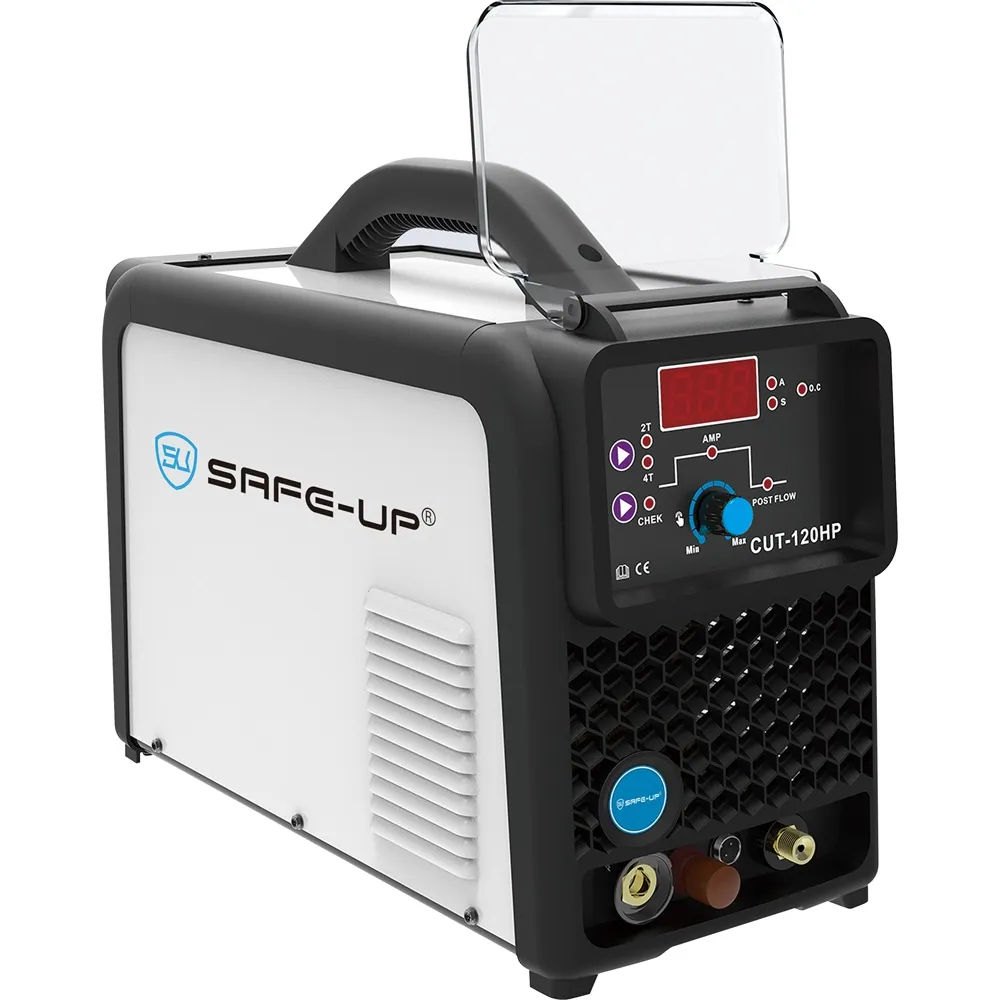

| Parameter | UNCUT-70HP | UNCUT-100HP | UNCUT-120HP |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 270 | 300 | 300 |
| Rated Input Capacity (KVA) | 8.0 | 15 | 19 |
| Cutting Thickness (MM) | ≤25 | ≤35 | ≤40 |
| Output Current (A) | 20-70 | 20-70 | 20-120 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 | 52*23*39 |
| Weight (KG) | 14.0 | 14.0 | 15.0 |

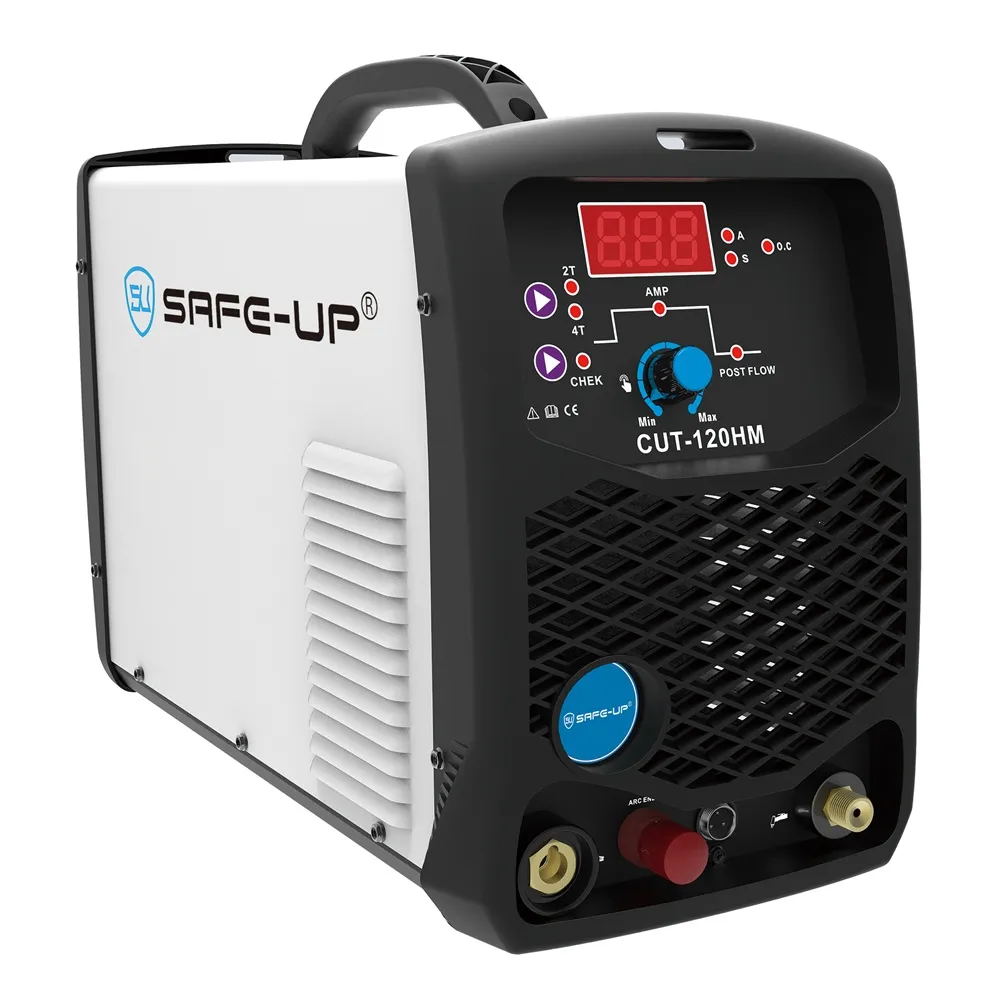

| Parameter | UNCUT-70HM | UNCUT-100HM | UNCUT-120HM |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 270 | 300 | 300 |
| Rated Input Capacity (KVA) | 8.0 | 15 | 19 |
| Cutting Thickness (MM) | ≤25 | ≤35 | ≤40 |
| Output Current (A) | 20-70 | 20-70 | 20-120 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 | 52*23*39 |
| Weight (KG) | 14.0 | 14.0 | 15.0 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
