High-Speed Performance: The concentrated plasma arc cuts up to four times faster than conventional oxy-fuel gas cutting, significantly lowering operational costs.
Superior Cut Quality: Produces precise, clean edges with minimal dross and zero thermal distortion across a wide variety of metals.
IGBT Inverter Technology: High-frequency design prevents electromagnetic interference (EMI), delivering smooth, reliable arc stability.
Pilot Arc Ignition: Non-contact arc starting eliminates the need for direct torch-to-metal contact, preserving nozzle condition and ensuring reliable ignition.
Consumable Protection: Post-flow gas control automatically cools the torch after cutting, extending consumable lifespan and preventing heat damage.
Operator Safety: Built-in protection systems, clear diagnostic LED indicators, and the complete elimination of hazardous combustible gases ensure a safe working environment.

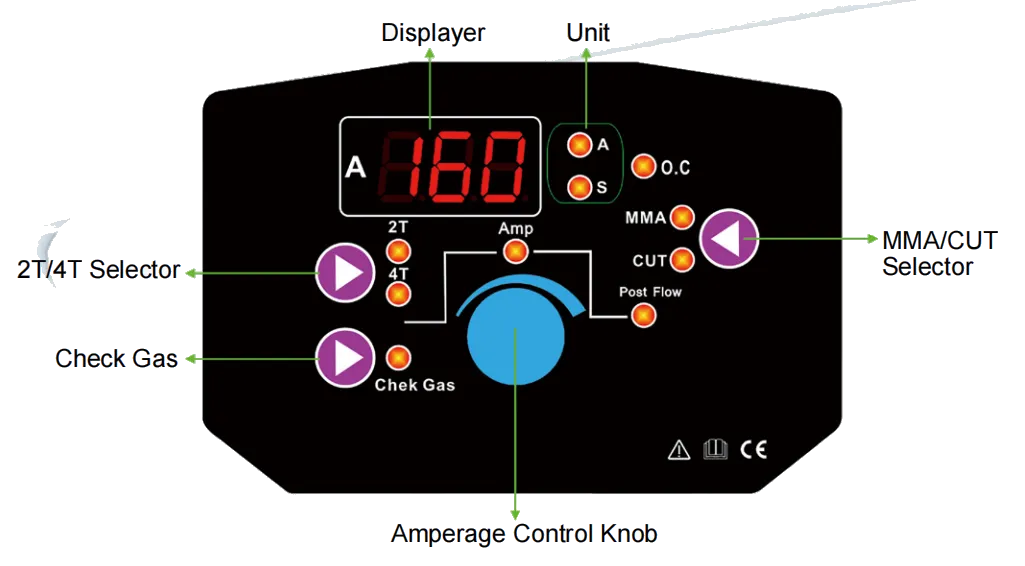

User-Friendly Interface: Front-panel controls include a real-time air pressure gauge, Pulse Width Modulation (PWM) efficiency, and low power consumption enclosed in a heavy-duty chassis.
Designs:
| Parameter | UNCUT-80CPD | UNCUT-100CPD | UNCUT-120CPD |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 280 | 280 | 300 |
| Rated Input Capacity (KVA) | 11 | 15 | 19 |
| Cutting Thickness (MM) | ≤30 | ≤35 | ≤40 |
| Output Current (A) | 20-80 | 20-100 | 20-120 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 68*43*70 | 68*43*70 | 68*43*70 |
| Weight (KG) | 47.0 | 50.0 | 55.0 |

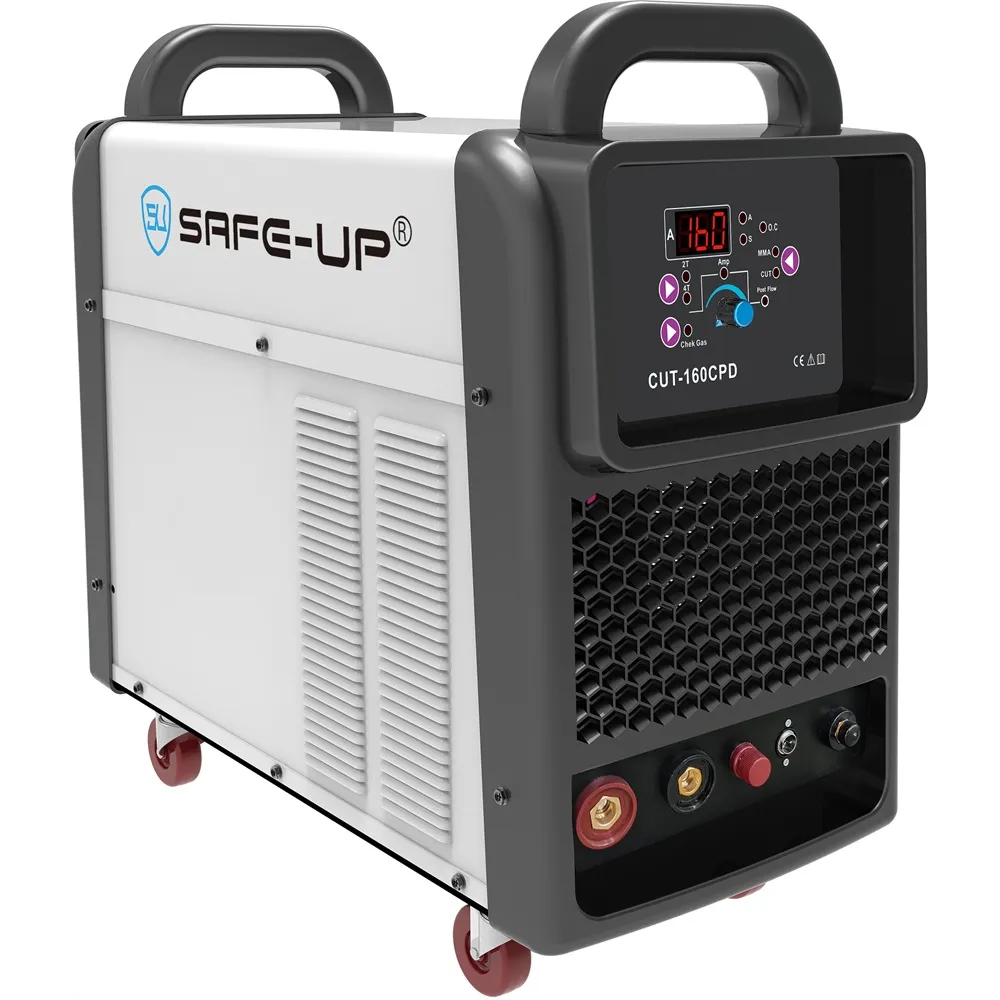

| Parameter | UNCUT-160CPD | UNCUT-200CPD |
| Mains Voltage (V) | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 300 | 300 |
| Rated Input Capacity (KVA) | 29 | 40 |
| Cutting Thickness (MM) | ≤50 | ≤70 |
| Output Current (A) | 20-160 | 20-200 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 68*43*70 | 68*43*70 |
| Weight (KG) | 60.0 | 63.0 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
