When air supplied after electric arc proceed between edge of electrode and base metal, the air through the arc current becomes ionized by chemical processing and divided into eIectronic & positive ion, mixed high temperature jet gas.Thus, we call the gas as Plasma and with this. the Plasma Cutter is invented.
Designs:
| Parameter | UNCUT-80PD | UNCUT-100PD | UNCUT-120PD |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 280 | 280 | 300 |
| Rated Input Capacity (KVA) | 11 | 15 | 19 |
| Cutting Thickness (MM) | ≤30 | ≤35 | ≤40 |
| Output Current (A) | 20-80 | 20-100 | 20-120 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 68*43*70 | 68*43*70 | 68*43*70 |
| Weight (KG) | 42.0 | 45.0 | 49.0 |

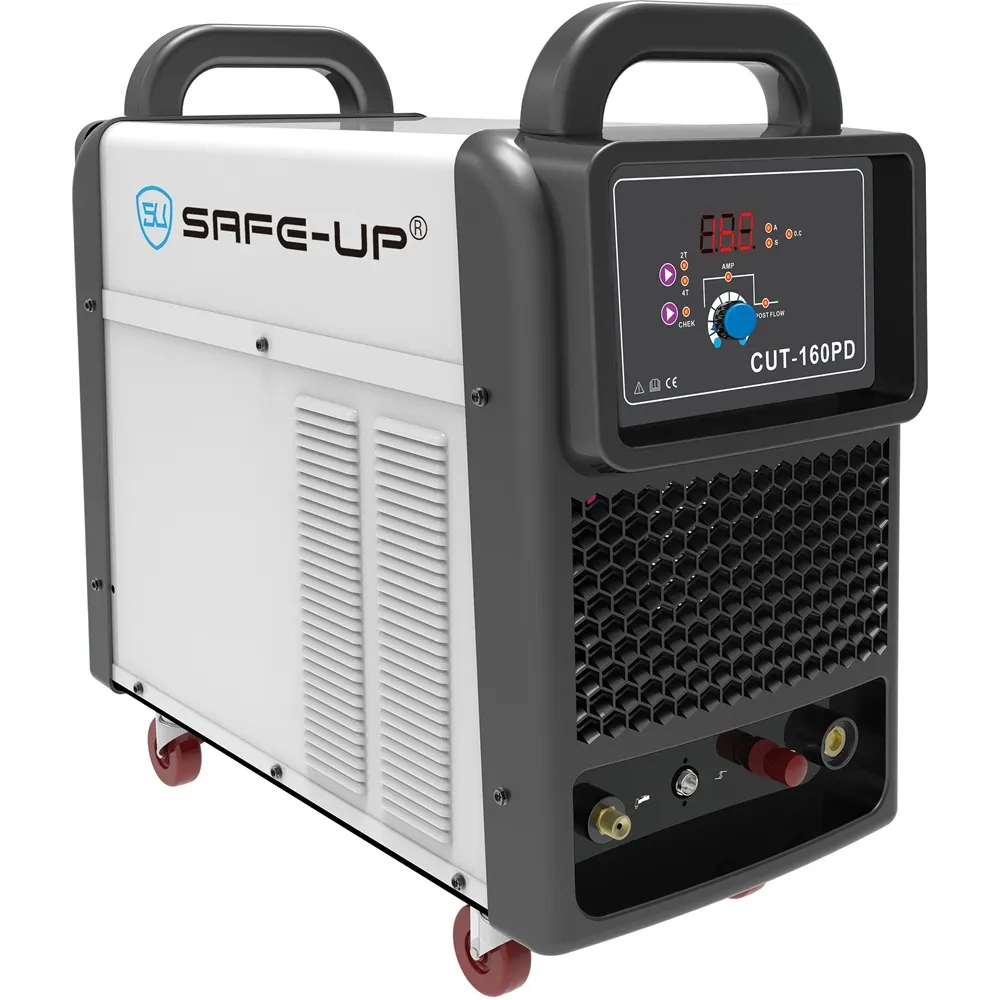

| Parameter | UNCUT-160PD | UNCUT-200PD |
| Mains Voltage (V) | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 300 | 300 |
| Rated Input Capacity (KVA) | 29 | 40 |
| Cutting Thickness (MM) | ≤50 | ≤70 |
| Output Current (A) | 20-160 | 20-200 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 68*43*70 | 68*43*70 |
| Weight (KG) | 53.0 | 55.0 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
