When air supplied after electric arc proceed between edge of electrode and base metal, the air through the arc current becomes ionized by chemical processing and divided into eIectronic & positive ion, mixed high temperature jet gas.Thus, we call the gas as Plasma and with this. the Plasma Cutter is invented.
Designs:

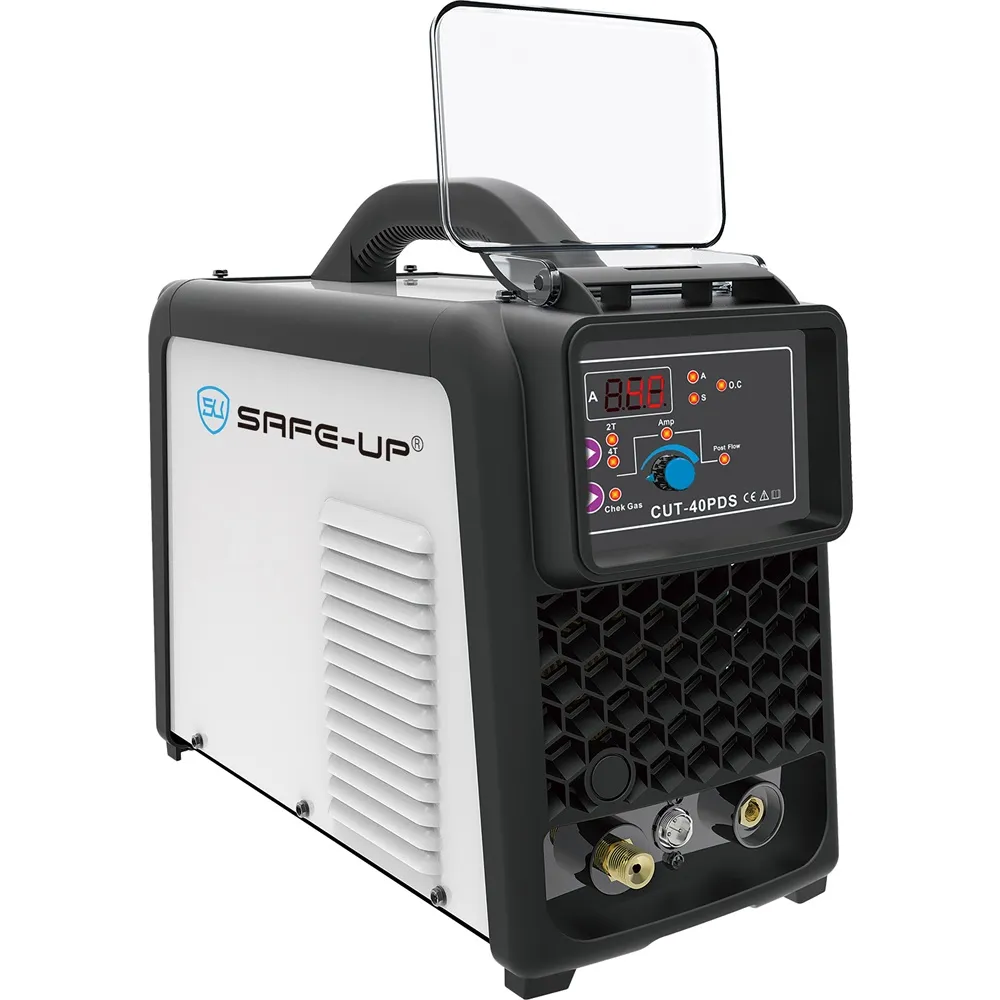

| Parameter | UNCUT-40PDS | UNCUT-40PD | UNCUT-50PD |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 230 | 230 | 230 |
| Rated Input Capacity (KVA) | 6.6 | 6.6 | 7.0 |
| Cutting Thickness (MM) | ≤15 | ≤15 | ≤18 |
| Output Current (A) | 20-40 | 20-40 | 20-50 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 41*19.5*35 | 41*19.5*35 | 41*19.5*35 |
| Weight (KG) | 7.0 | 7.5 | 8.0 |
| Parameter | UNCUT-60PD (220V) | UNCUT-60PD (380V) |
| Mains Voltage (V) | 220 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 240 | 240 |
| Rated Input Capacity (KVA) | 7.8 | 7.8 |
| Cutting Thickness (MM) | ≤20 | ≤20 |
| Output Current (A) | 20-60 | 20-60 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 |
| Weight (KG) | 13.0 | 13.0 |

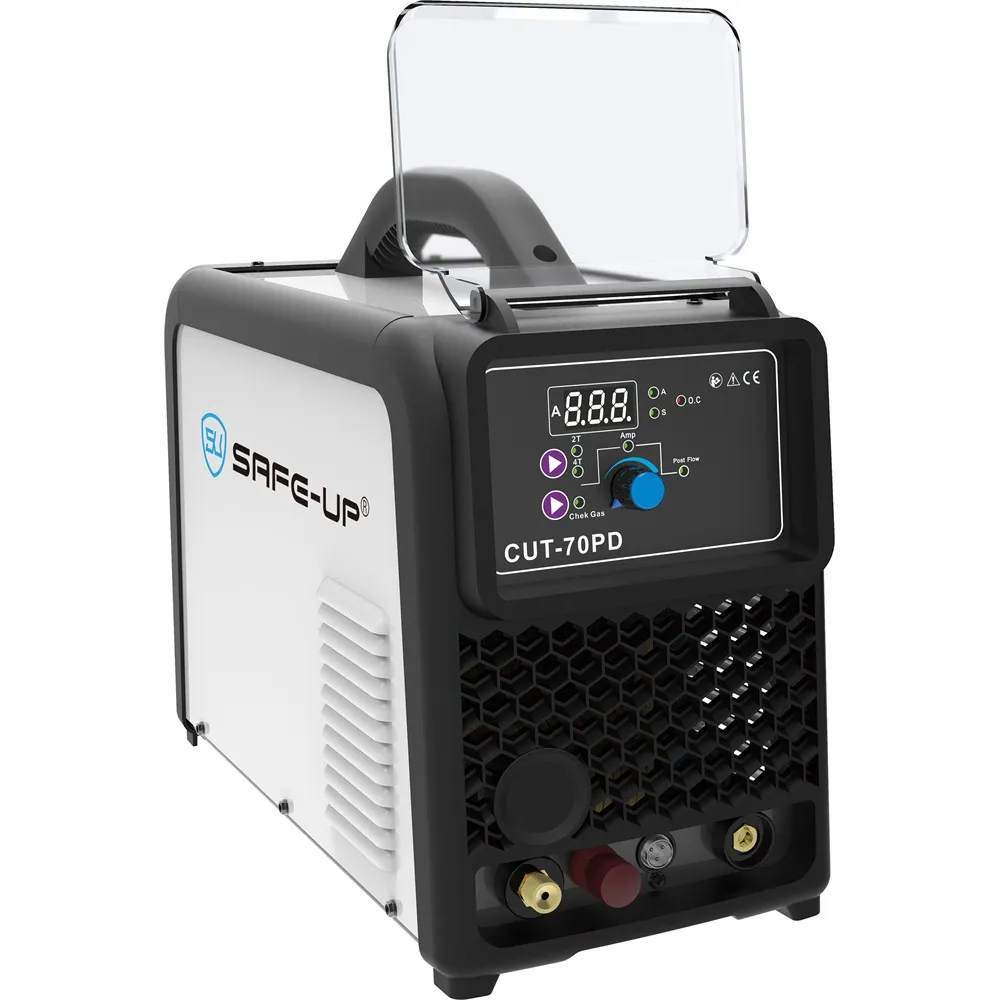

| Parameter | UNCUT-70PD (220V) | UNCUT-70PD (380V) |
| Mains Voltage (V) | 220 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 240 | 240 |
| Rated Input Capacity (KVA) | 8.0 | 8.0 |
| Cutting Thickness (MM) | ≤25 | ≤25 |
| Output Current (A) | 20-70 | 20-70 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 |
| Weight (KG) | 13.5 | 13.5 |
individual packing，6pcs/ctn
Individual Packing： 6/CTN
