The AC/DC features an all-new AC Frequency variable control system that provides the ideal conditions for various aluminum thin plate welding applications. The AC Frequency has a greater arc concentration when compared with conventional machines, making it possible to obtain the desired weld penetration and heat input. The AC Frequency conlrol can be set between 0.1 to 500Hz for desired frequency and bead shape,while keeping noise in the production environment to a minimum.
Designs:

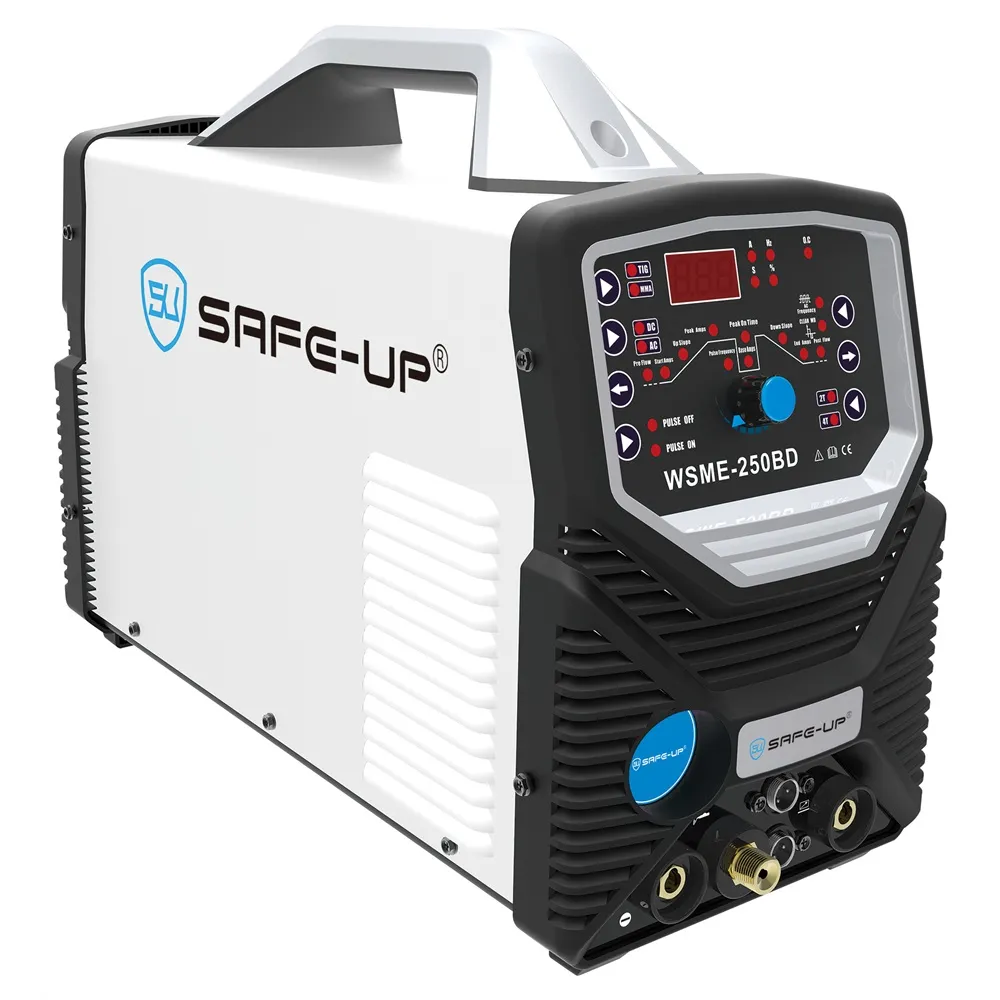

| Parameter | UNWSME‑250BD | UNWSME‑300BD |
| Mains Voltage (V) | 220 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 65 | 65 |
| Rated Input Capacity (KVA) | 9.5 | 10.8 |
| Insulation Class | F | F |
| Output Current (A) | 5-250 | 5-300 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 |
| Weight (KG) | 19.7 | 22.2 |

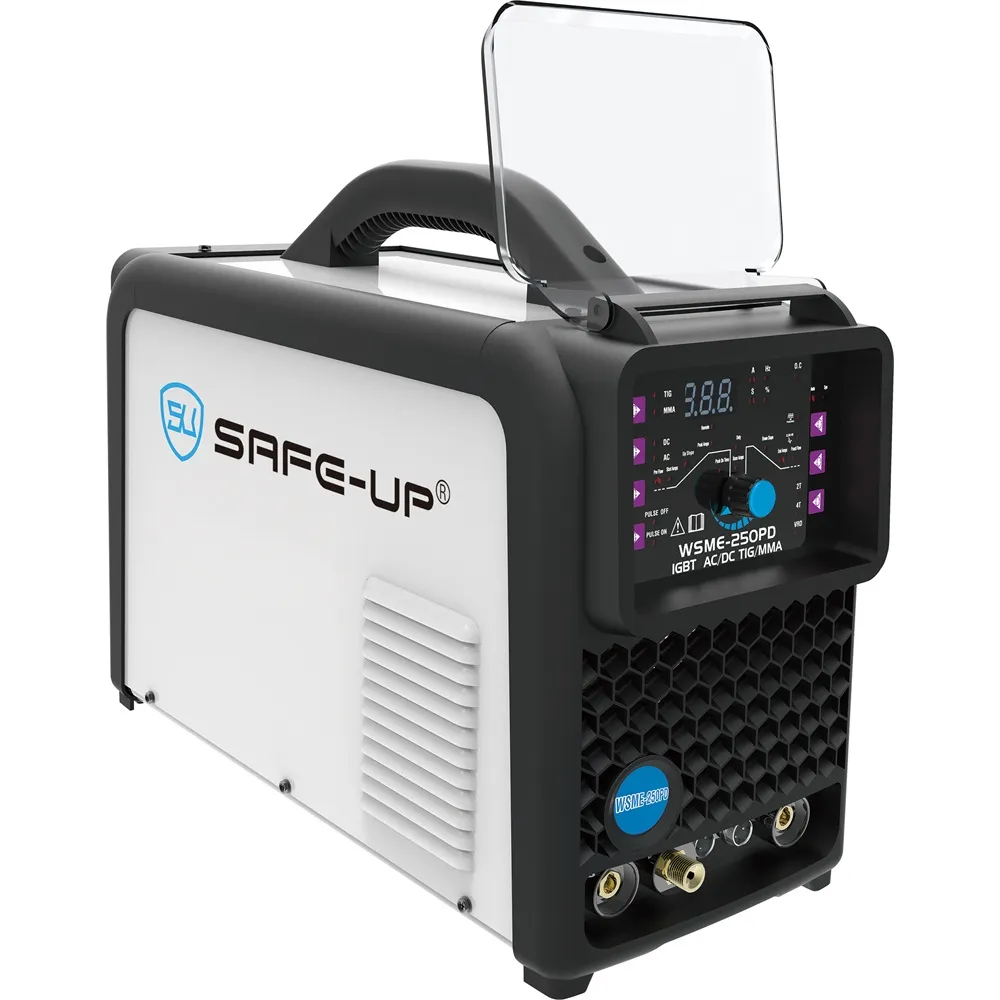

| Parameter | UNWSME‑250PD | UNWSME‑300PD |
| Mains Voltage (V) | 220 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 65 | 65 |
| Rated Input Capacity (KVA) | 9.5 | 10.8 |
| Insulation Class | F | F |
| Output Current (A) | 5-250 | 5-300 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 |
| Weight (KG) | 19.7 | 22.2 |

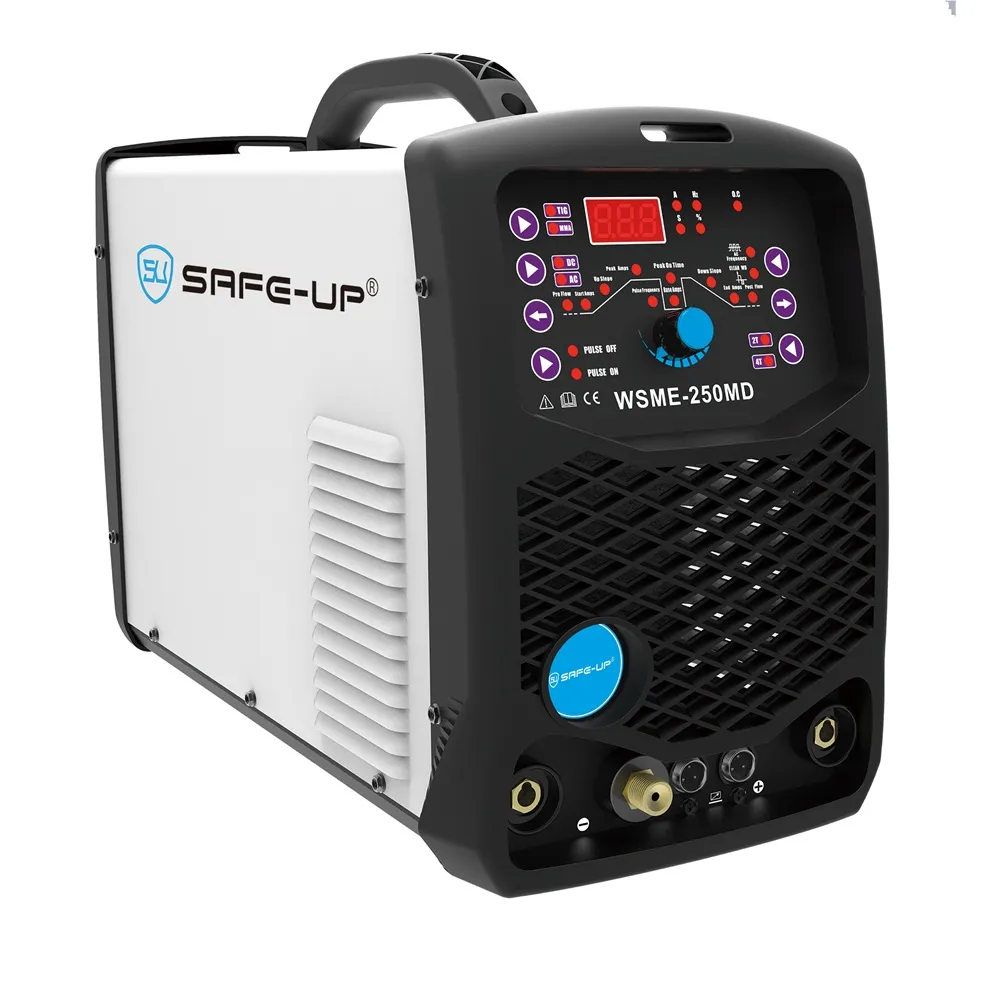

| Parameter | UNWSME‑250MD | UNWSME‑300MD |
| Mains Voltage (V) | 220 | 380 |
| Frequency (HZ) | 50/60 | 50/60 |
| No-load Voltage (V) | 65 | 65 |
| Rated Input Capacity (KVA) | 9.5 | 10.8 |
| Insulation Class | F | F |
| Output Current (A) | 5-250 | 5-300 |
| Rated Duty Cycle (%) | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 |
| Weight (KG) | 19.7 | 22.2 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
