INVERTER TIG/MMA WELDING MACHINE

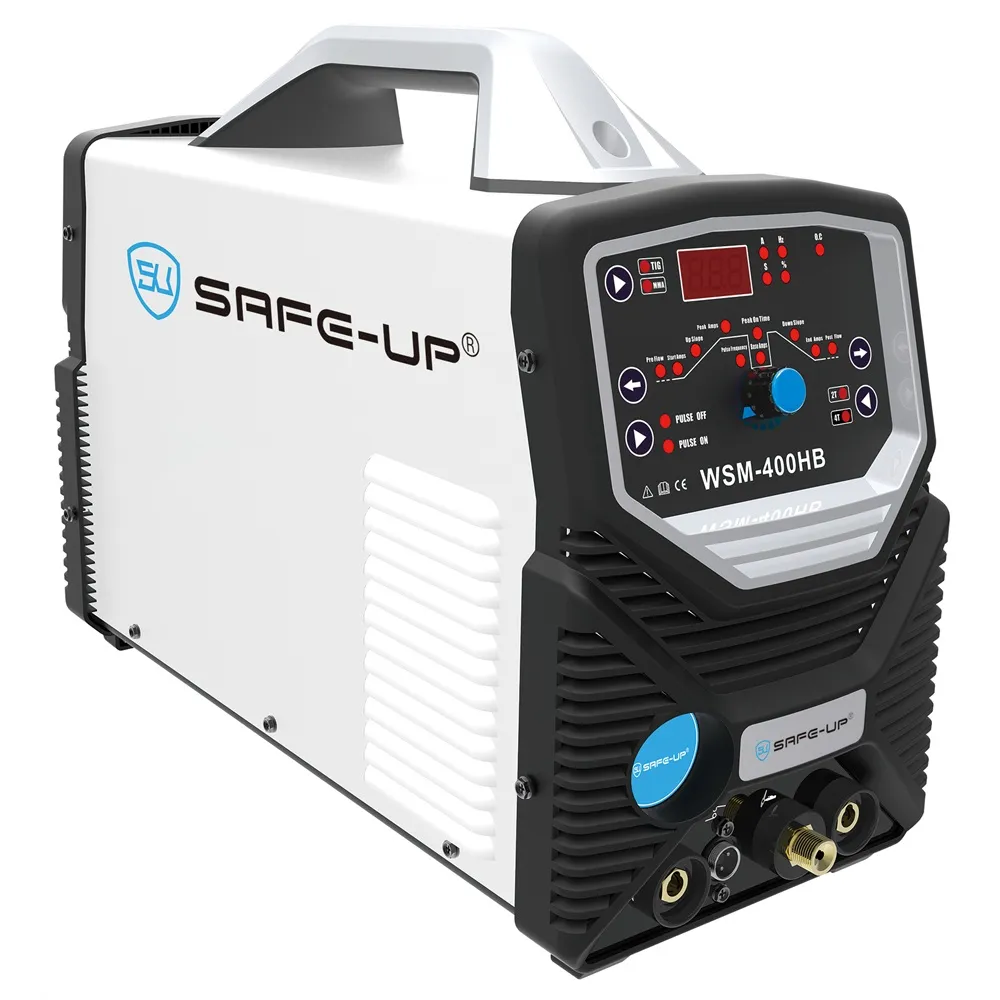

UNWSM-400HB




  • Inverter DC Power Source: Represents the latest evolution in DC inverter technology, featuring a flat transformer design for highly stable arc performance and deep penetration.

  • Dual TIG/MMA Functionality: Versatile welding power source designed for both TIG and MMA welding across various non-alloy metals.

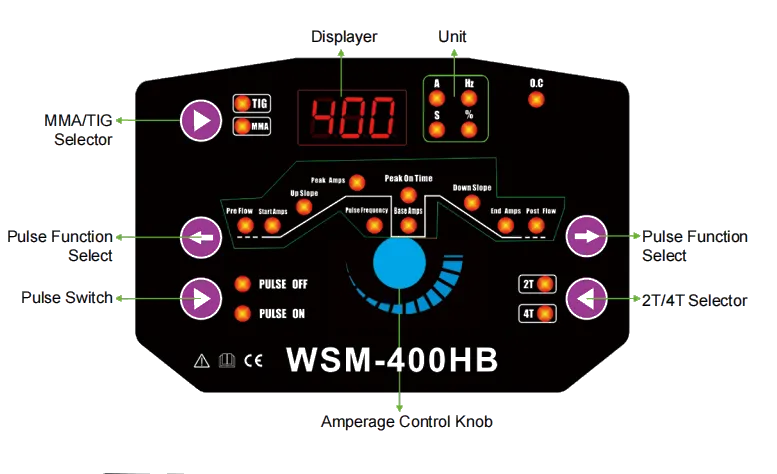

  • Digital & Pulse Control: Features digital precision and pulse capability, allowing for professional-grade, high-quality welds on thin metal sheets.

  • High-Frequency IGBT Design: Utilizes high-frequency IGBT technology to eliminate electromagnetic interference, ensuring reliable stability and superior welding performance.

  • Precise Arc Striking: High-frequency arc ignition delivers fast, precise, and efficient arc starting every time.

  • Compact & Portable Ergonomics: Designed with an innovative compact footprint and a robust handle for effortless maneuverability and transport.

  • High Efficiency & Low Energy: Delivers energy-saving performance with high operating efficiency and automatic compensation for thin sheet metal welding.





Designs:

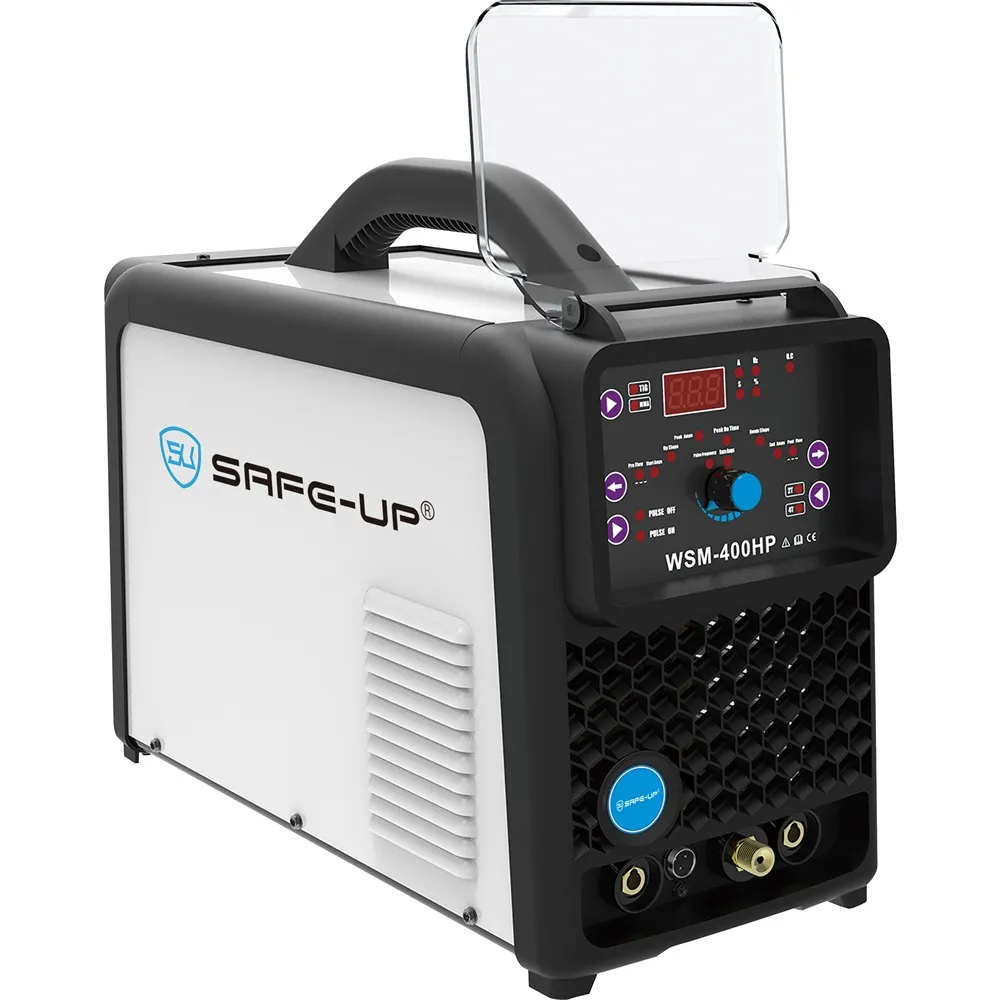

UNWSM-400HP
UNWSM-400HP

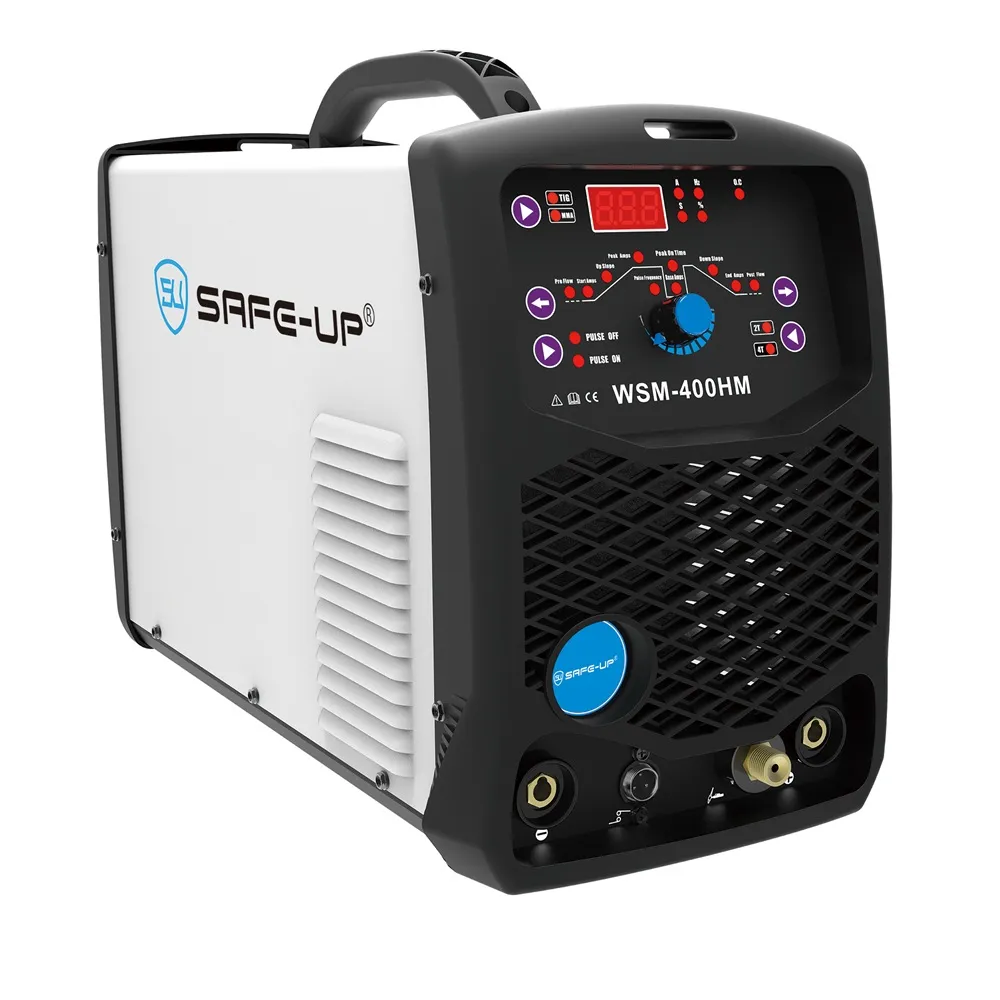

UNWSM-400HM
UNWSM-400HM
Technical Data
ParameterUNWSM‑
315HB
UNWSM‑
400HB
Mains Voltage (V)380380
Frequency (HZ)50/6050/60
No-load Voltage (V)7575
Rated Input Capacity (KVA)13.018.0
Insulation ClassFF
Output Current (A)20-31520-400
Rated Duty Cycle (%)6060
Dimensions (CM)52*23*3952*23*39
Weight (KG)18.019.0
ParameterUNWSM‑
315HP
UNWSM‑
400HP
Mains Voltage (V)380380
Frequency (HZ)50/6050/60
No-load Voltage (V)7575
Rated Input Capacity (KVA)13.018.0
Insulation ClassFF
Output Current (A)20-31520-400
Rated Duty Cycle (%)6060
Dimensions (CM)52*23*3952*23*39
Weight (KG)18.019.0
ParameterUNWSM‑
315HM
UNWSM‑
400HM
Mains Voltage (V)380380
Frequency (HZ)50/6050/60
No-load Voltage (V)7575
Rated Input Capacity (KVA)13.018.0
Insulation ClassFF
Output Current (A)20-31520-400
Rated Duty Cycle (%)6060
Dimensions (CM)52*23*3952*23*39
Weight (KG)18.019.0

Packaging Method

A

individual packing,6pcs/ctn

A
B

individual packing,6pcs/ctn

B
