UNWW

UNWW





  • CE certificate

  • View area:100*59.5mm

  • Power Supply:Li-battery&Solar

  • Sensitivity Control：External & Stepless

  • 4 Arc Sensor

  • Digital Sensitivity Control




Designs:

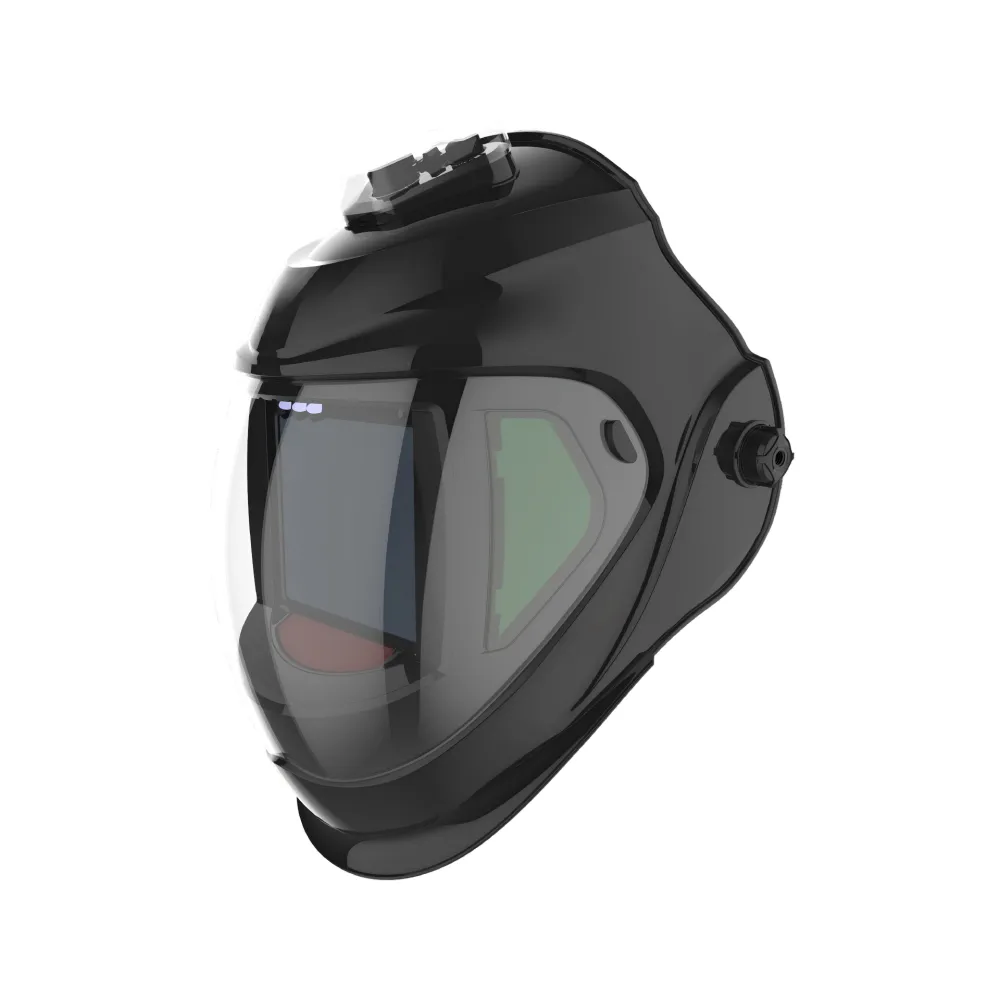

Flip
Flip
Download the PDF

Technical parameter

Optical Class                1/1/1/1
Cartridge Size                153.5×120.5×42mm
Viewing Area                109.5×97mm(4.31"×3.82")
Light State                DIN3
Dark State                DIN5~9/9~13
Shade Control                External & Stepless
Switching Time                1/10000S±20%
Sensitivity Control                External & Stepless
Delay Time                0.1S~1S
Power Supply                Li‑battery&Solar
Rated Capacity of Li‑Battery                300mAh Rechargeable
Replaceable Battery                No
Operating Temp.                ‑5℃ ~55℃
Storing Temp.                ‑20℃ ~70℃
Arc Sensor                4
Low Amperage TIG Rated                ≥5amps
Helmet Material                PP
UV/IR Protection                DIN13
Test                Yes
Low Battery                Yes
Grinding                Yes
Cutting                Yes
LED                Yes

DELAY

Simple shift fast
/mid/slow 0.1-1.0S


SENSITIVITY

Switches from light
to dark in just 1/10000 sec


SHADE

Darking shade
under range of DIN5-9/9-13


GRIND

Perfect for TIG,MIG,MAG,
MMA,and ARC welder

Packaging Method

Option A

Bulk Packing: 20pcs/CTN

Option A

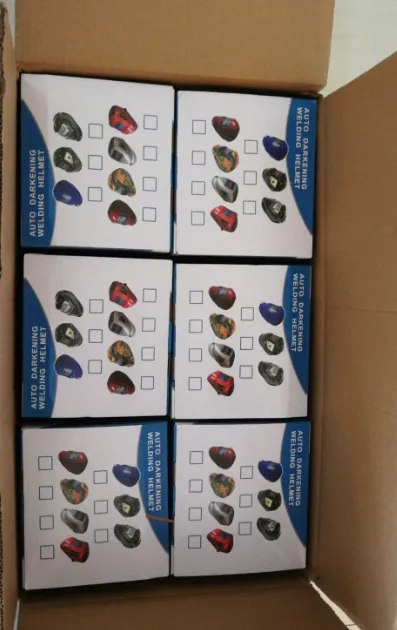

Option B

Individual Packing: 6pcs/CTN

Option B
