UN9100C

UN9100C

The powered respirator is used for dust removal and partial odor removal, not for gases or vapors and is used to reduce or remove resistance to inhalation during respiration - by producing a constant airflow, The unit is designed with manufacturer's minimum design flow rate 170 litres, 210 litres or 250 litres per minute (the flow rate at which the equipment still will fulfill the requirements of the class in either EN12942 or EN12941).The actual working time will be about 8 hours. Except the welding industry, our respirator also can be used in other industries (such as spraying).


Download the PDF

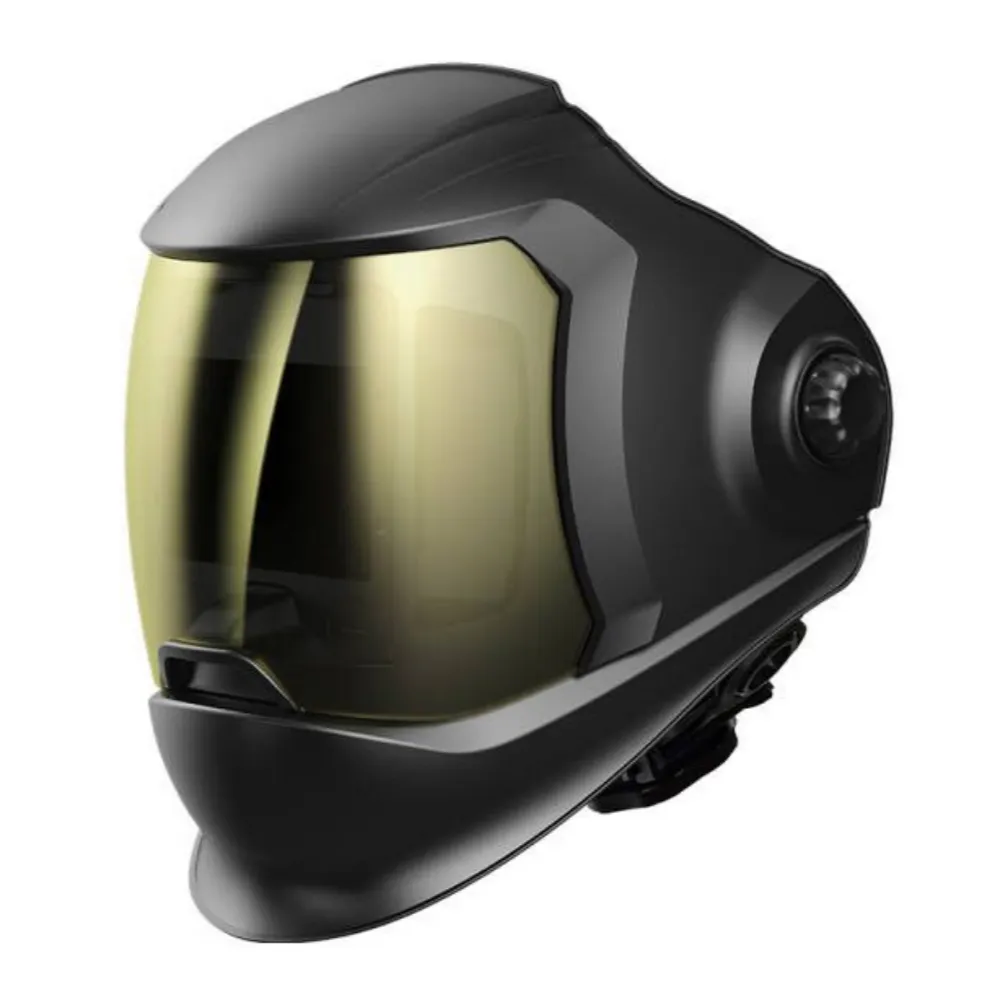

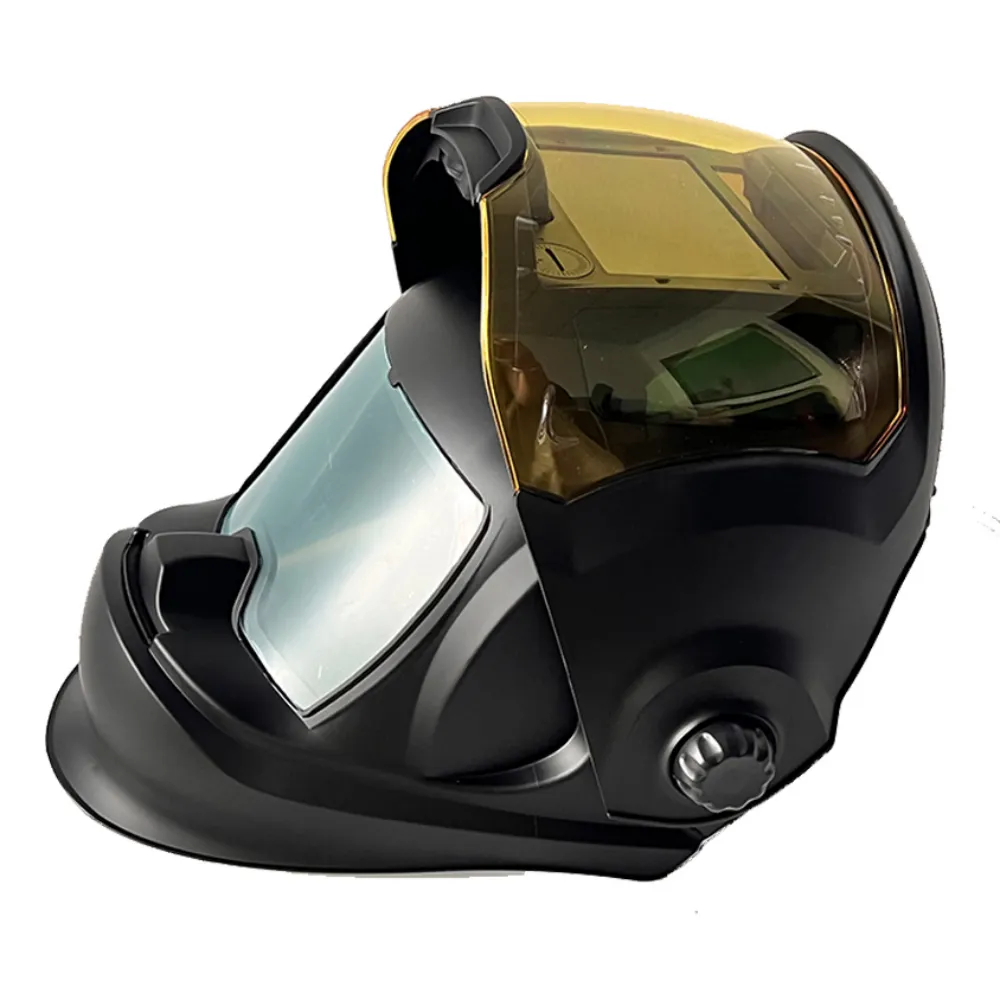

Auto darkening welding helmet specification

Optical Class                1/1/1/1 TRUE COLOR
LCD Viewing Area                75×112mm(2.95×4.41in.)
Arc Sensors                4
Light State Shade                DIN 3
Grind State                DIN 3
Cutting Shades                4 to 8
Variable Welding Shades                9 to 12 / 13 to 15
Shade Control                Variable Shade, Digital Display Control
Power On/Off                Auto-ON, Auto-OFF
Sensitivity Control                Variable 1 to 10, Digital Display Control
Filtration Efficiency                99.97%
Airflow                170 L/min,210L/min,250L/min
Charging time                1h
Rechargeable Time                >500 times
Alarm mode                Buzzer Sound
Working Humidity                <90%
Storage Humidity                <85%
Air Filter class                TH3

BATTERY

  • Type: Lithium,rechargeable

  • Voltage: 12 Volt

  • Capacity: 5200 mAh

  • Operating time: HI:7 Hours,MI:9 Hours,Lo:11 Hours

  • Charging time: 3 h

  • Charging cycles: >500

  • Material case: Impact proof ABS

  • Color: Black

  • Weight: 350 grams

  • Dimensions: 137x50x72 mm

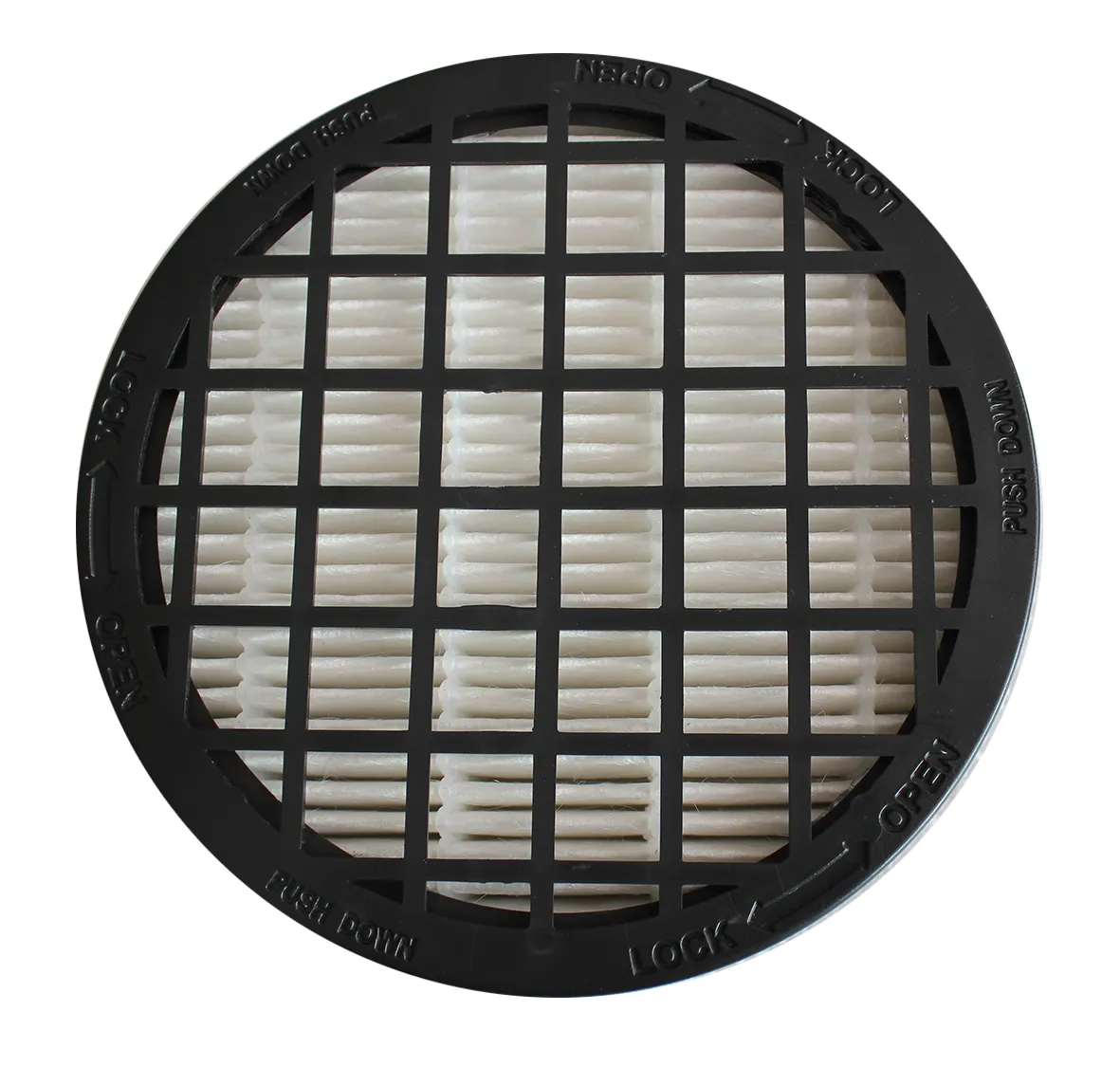

AIR FILTER

  • Filter class: TH3

  • Material filter medium: Efficient filtering low resistance papers

  • Material support disks: ABS

  • Color: Black

  • Weight: 90 grams

  • Dimension: DxH: ∅120x38mm

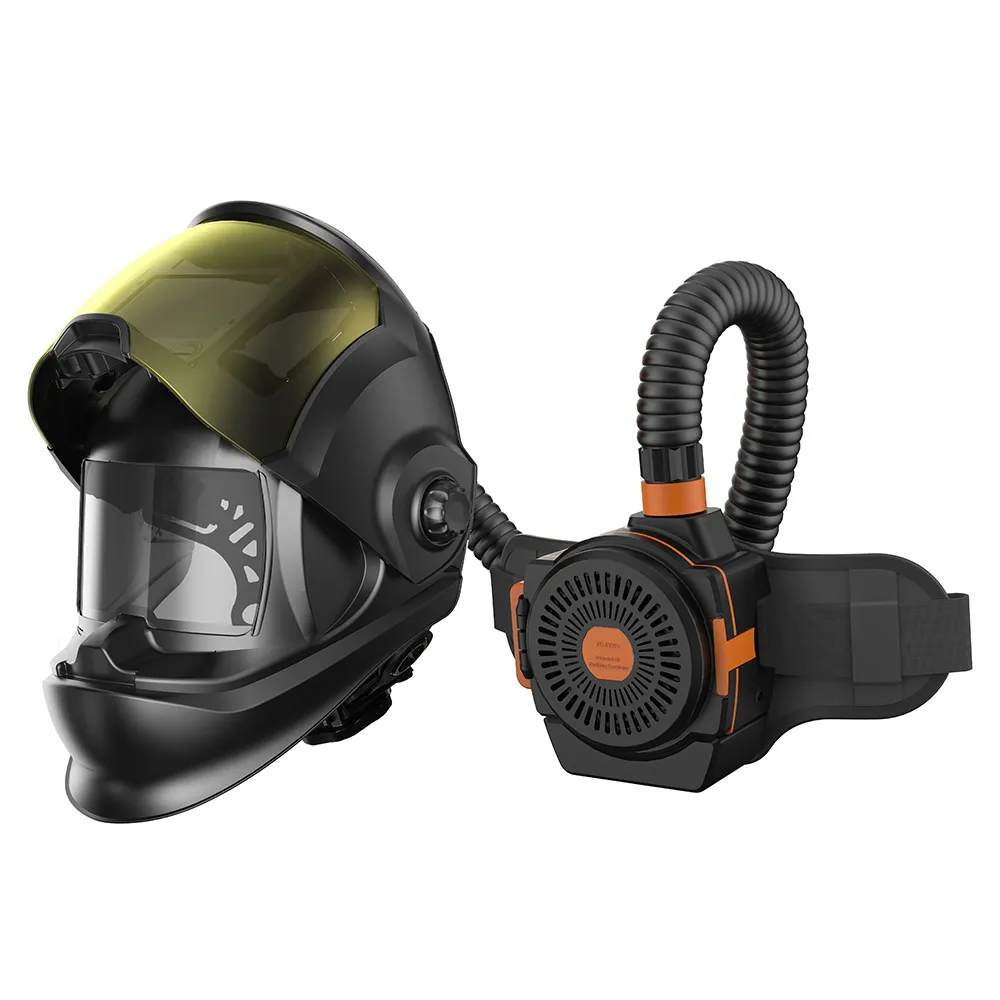

welding helmet with respirator


Host


Waist Pad


Belt


Air Duct


18650CHG Charger


Respirator Hood

Equipped





Activated Carbon

Filter


Stainless Steel

trainer


Air Filter



Lithium Battery


Packaging Method

First

Place the product into the portable
inner box and reinforce it with foam.

First
Then

Put portable inner box into the
reinforced individual outer carton.

Then
