UN9100A

UN9100A

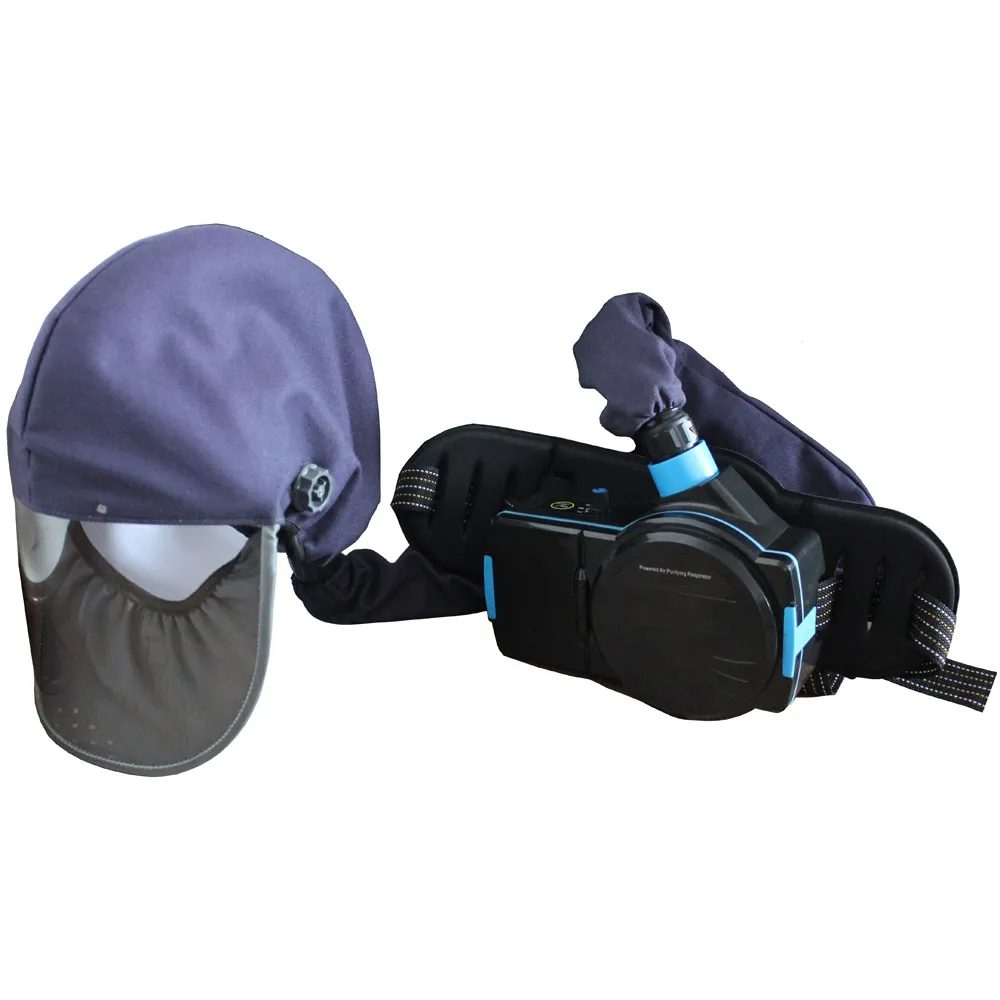

The powered respirator is used for dust removal and partial odor removal, not for gases or vapors and is used to reduce or remove resistance to inhalation during respiration - by producing a constant airflow, The unit is designed with manufacturer's minimum design flow rate 150 litres, 180 litres or 220 litres per minute (the flow rate at which the equipment still will fulfill the requirements of the class in either EN12942 Or EN12941).The actual working time will be about 8 hours. Except the welding industry, our respirator also can be used in other industries (such as spraying).

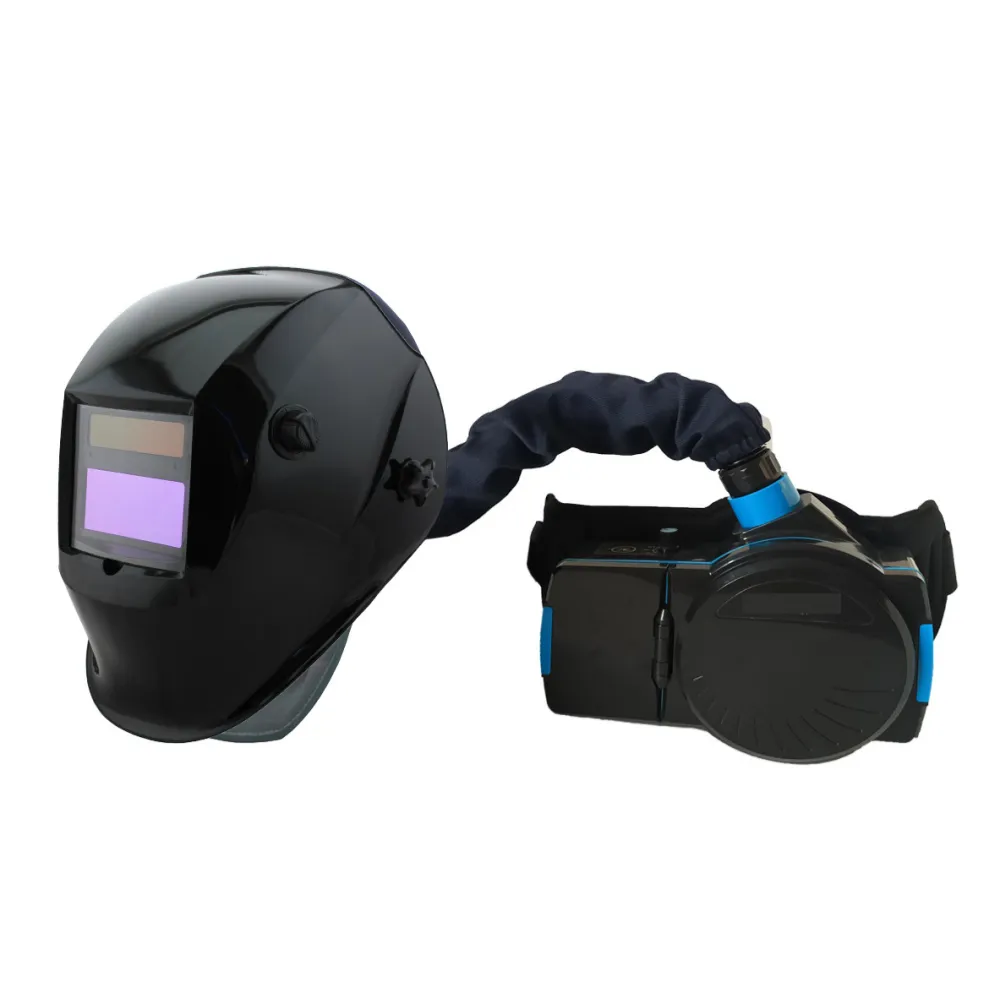

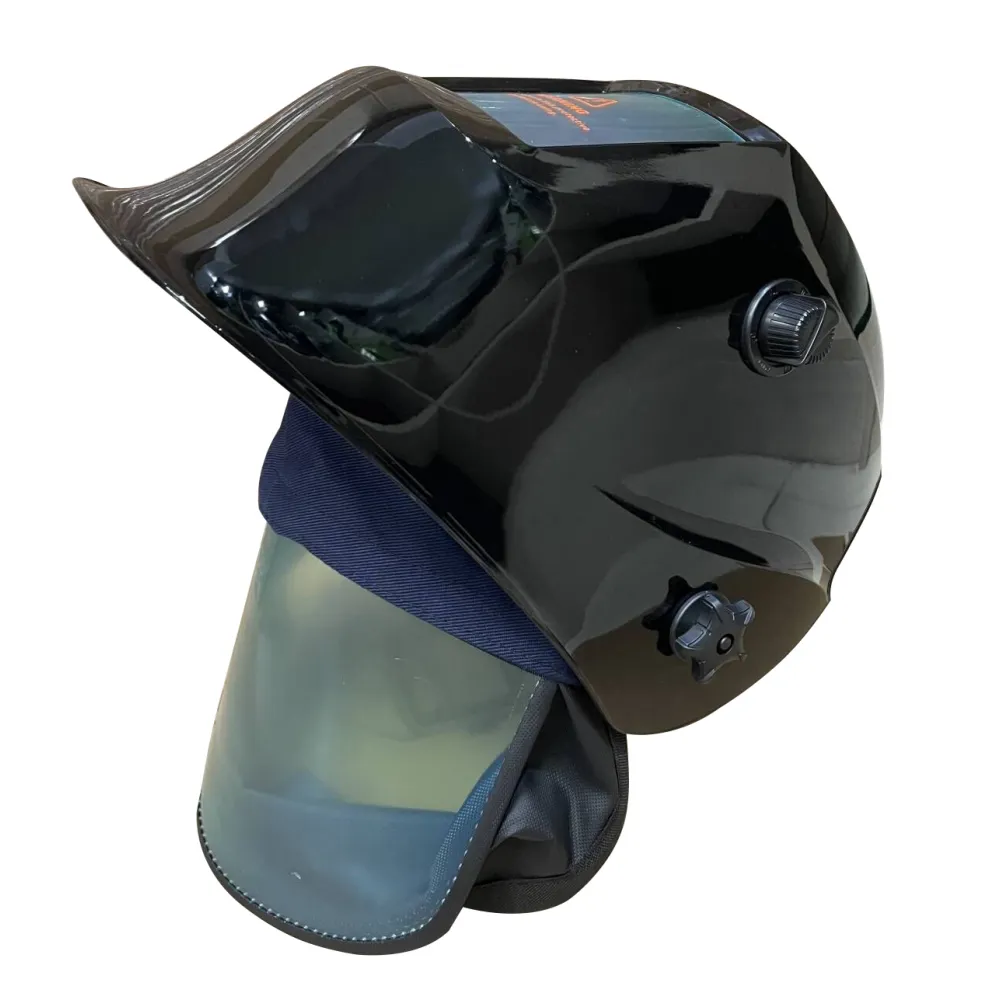

Auto darkening welding helmet specification

ADF Model                98*48mm
Filter Dimension (mm)                110*90*9mm
Light State Shade                DIN4
Dark State Shade                DIN9-13
Shade Control Ways                External
Switching Time                < 1/25000s
Airflow                150 L/min,180L/min,220L/min
Charging time                2.5h
Rechargeable Time                >500 times
Sensitivity Control                YES
Delay Time                0.1-0.9s
UV/IR Protection Class                DIN16
Working Temperature                Between -10 And 55 ℃
Power Supply                Solar Cell & Lithium Batteries
Working Humidity                <90%
Storage Humidity                <85%
Air Filter class                TH2

BATTERY

  • Type: Lithium,rechargeable

  • Voltage: 12 Volt

  • Capacity: 4300 mAh

  • Operating time: >8hrs

  • Charging time: 2.5 hrs

  • Charging cycles: >500

  • Material case: Impact proof ABS

  • Color: Black

  • Weight: 315 grams

  • Dimensions: 87x43x63 mm

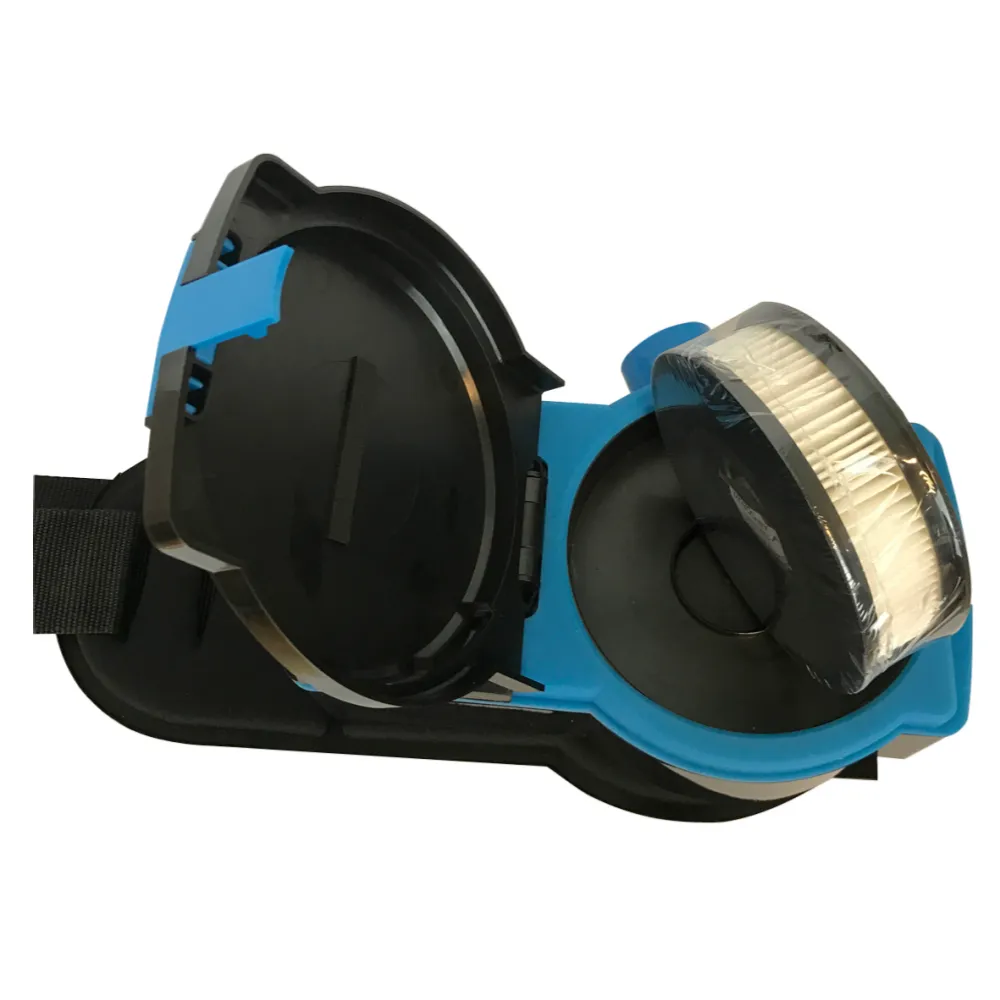

AIR FILTER

  • Filter class: TH2

  • Material filter medium: Efficient filtering low resistance papers

  • Material support disks: ABS

  • Color: Black

  • Weight: 135 grams

  • Dimension: DxH: ∅120x35mm

Package Includes

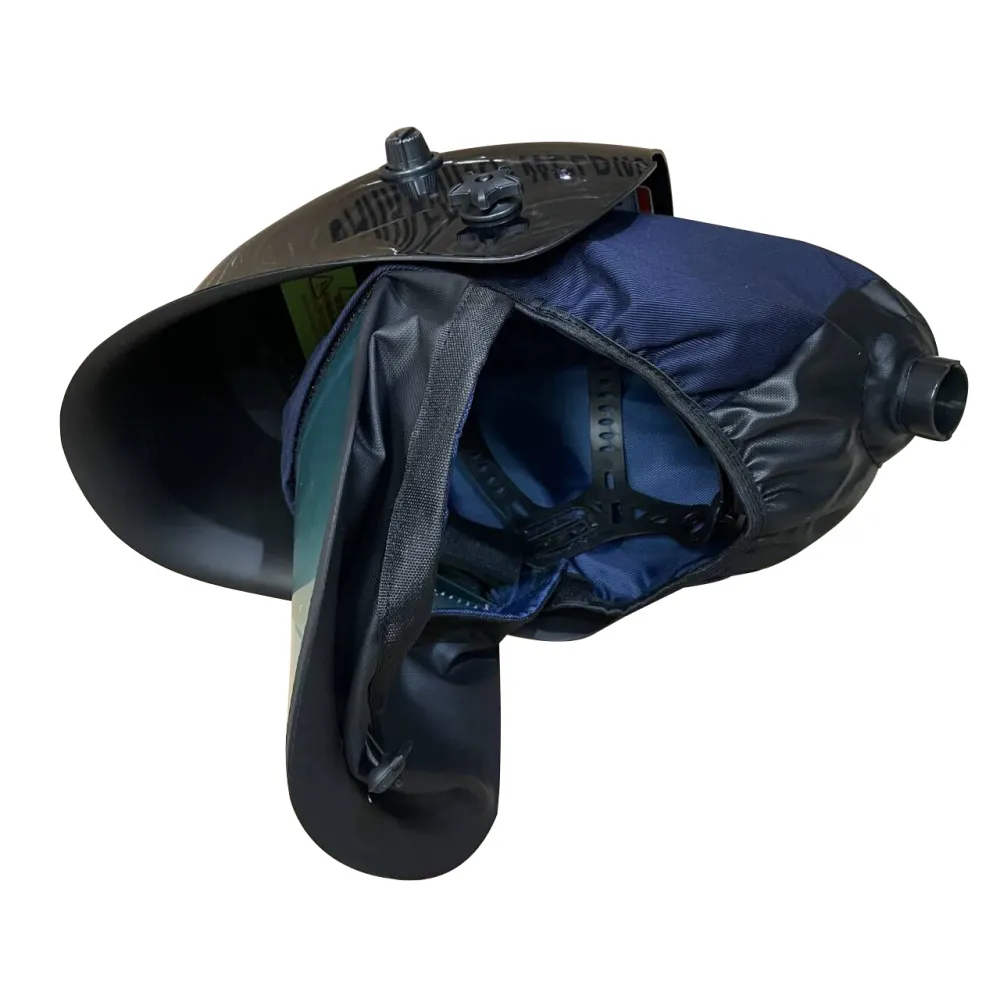

Hood


Respirator


Air Filter in Machine


Hose


Blower


Belt


Waist Pad


Battery Charger

Packaging Method

First

Place the product into the portable
inner box and reinforce it with foam.

First
Then

Put portable inner box into the
reinforced individual outer carton.

Then
