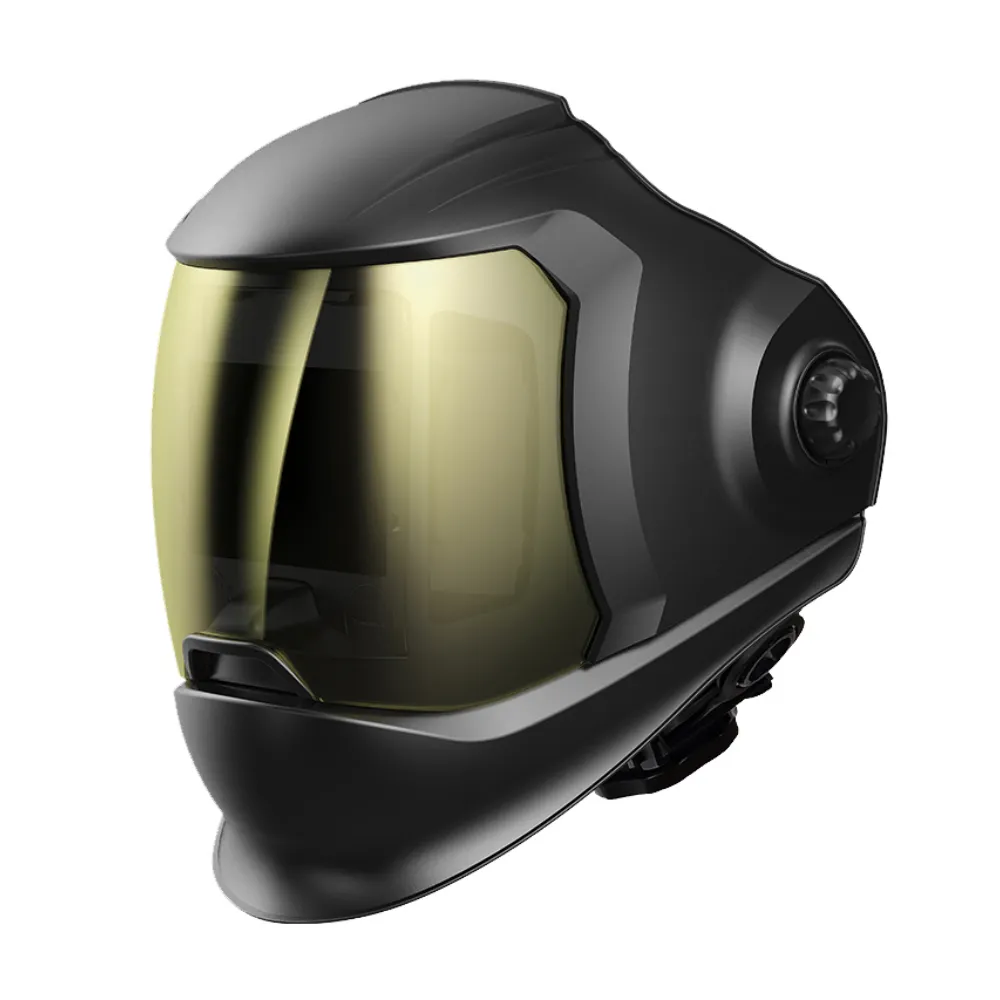

UN-10K

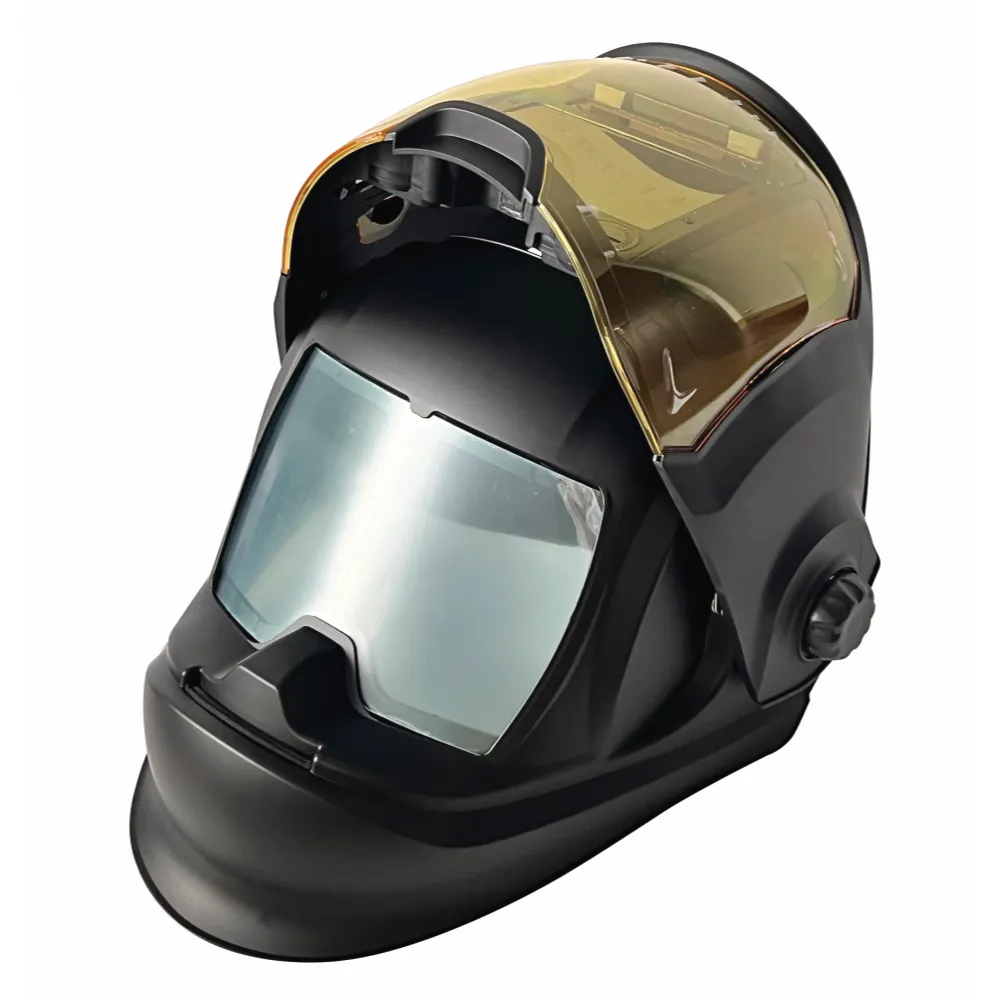

Flip-top helmet easy to switch welding & grinding modes.
connectable powered air purifying respirator for breathing protection.
The welding viewing area has a large range, up to 112mm.
Dual side observation windows extend view and lower accident risks.
intelligent status sensing with auto wake/sleep.
LCD for intuitive parameter display.
UN-10K storage function auto-saves latest settings.

Download the PDF

TECHNICAL PARAMETERS

Optical Class 1/1/1/1

LCD Viewing Area 75*112mm(2.95*4.41in.)

Arc Sensors 4

Light State Shade DIN 3

Grind State DIN 3

Cutting Shades 4 to 8

Variable Welding Shades 9 to 12 / 13 to 15

Shade Control Variable Shade, Digital Display Control

Power On/Off Auto-ON, Auto-OFF

Sensitivity Control Variable 1 to 10, Digital Display Control

UV/IR Protection Up to Shade DIN16 at all times

Power Supply Solar cell with battery assist

Battery 2xCR2450 lithium batteries

Light to Dark Switching Time 0.00004 sec. (1/25,000 sec.)

Dark to Light Variable 0 to 10,Digital Display Control

Switching Time (0.1 sec.to 1.0 sec.)

Grinding Yes

Auto Darkening Welding Filter (Control Panel Version)

Equipped with independent control buttons and digital display screen. Supports stepless adjustment of shade, sensitivity and delay parameters, compatible with various welding operations.

Auto Darkening Welding Cartridge (Knob Version)

Rotary knob operation design, built-in high-performance dimming lens. Stable light switching performance, simple structure and widely used in welding helmet.

Replacement Accessories Kit

Complete spare parts including inner & outer protective lenses, sealing strips and mounting parts. For daily maintenance and replacement of welding filter.

Packaging Method

Option A

Bulk Packing: 20pcs/CTN

Option B

Individual Packing: 6pcs/CTN
