UNE-8500

UNE-8500




  • CE certificate

  • View area:92*42mm

  • DIN9-13

  • Dealy time:0.2-0.8s

  • Switching Time:1/15000s

  • Lithium Battery& Solar Powered

  • 2 Arc Sensor





Designs:

Mat Black
Mat Black
Shiny
Shiny
Decals
Decals
Download the PDF

TECHNICAL PARAMETERS

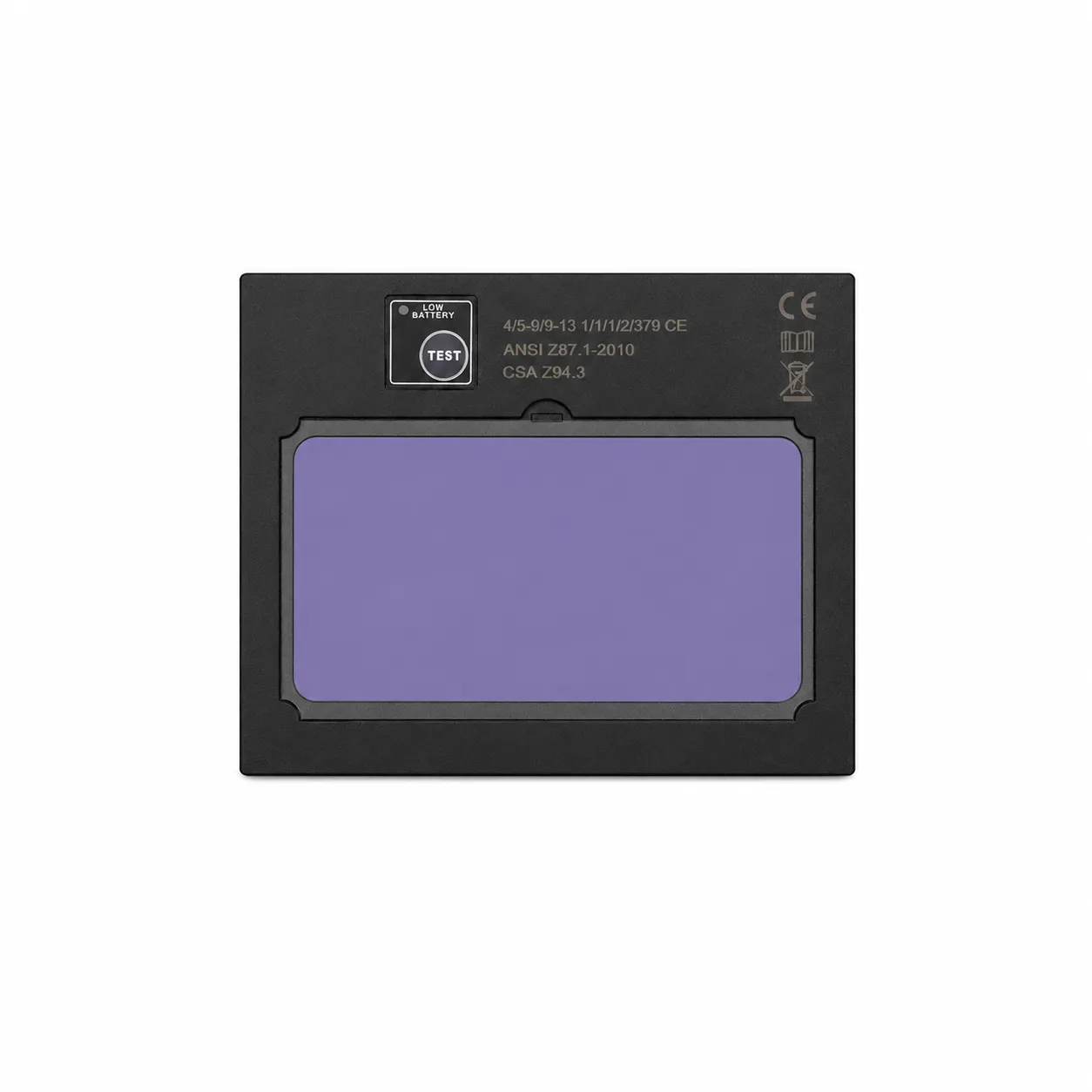

Viewing Area                100*50mm
Cartridge Size                125x102x18mm
Arc Sensor                4
UV/IR Protection                UP to shade DIN 16 at all times
Light State                DIN 4
Dark State                Variable Shade DIN 5-9/9-13
Sensitivity Control                AUTO
Switch Time                1/30000S
Delay Control                0.1-1.0S, by infinitely dial knob, from Dark to Light
Power Supply                Solar cell and replaceable 2×CR2032 lithium battery
TIG AMP Rating                DC≥5, AC≥5
Operating Temperature                -5℃ to +55℃
Storing Temperature                -20℃ to +70℃
Grinding Functions                YES
Welding process                MMA, MIG/MAG,TIG

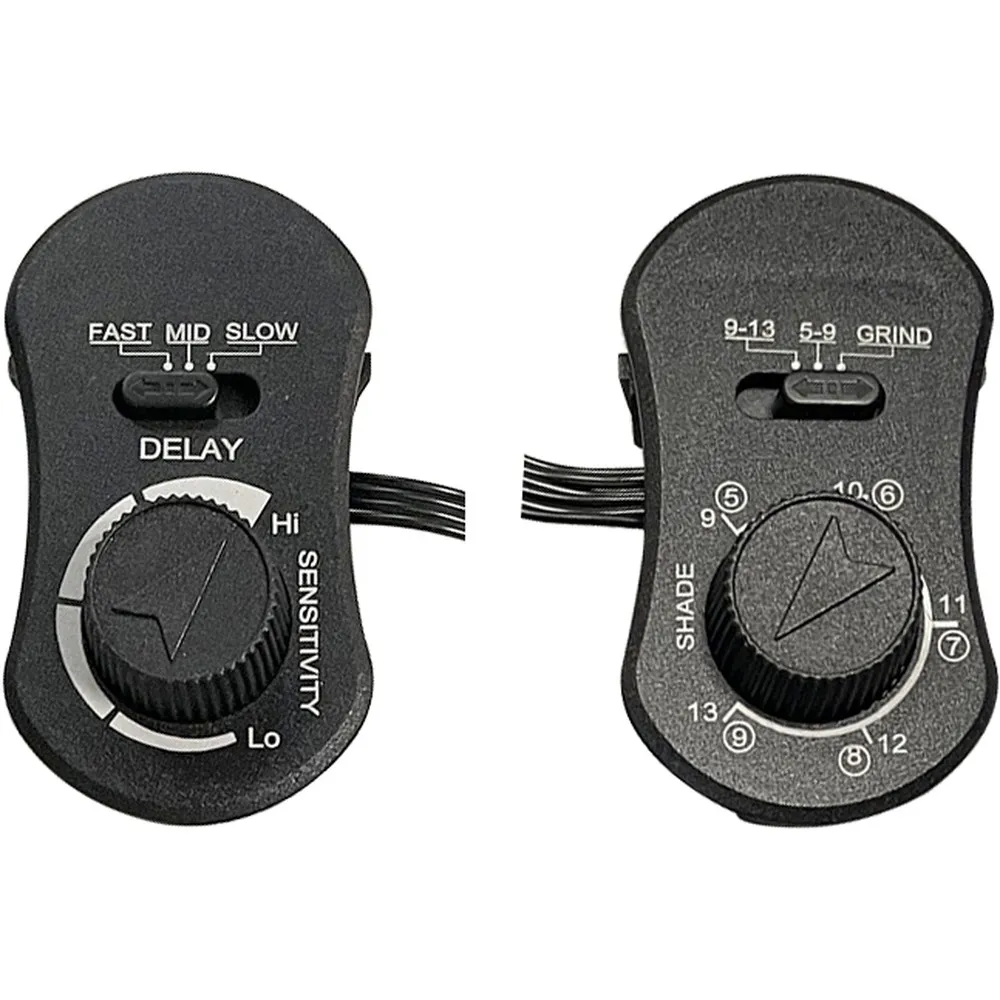

DELAY

Simple shift fast/mid/slow 0.1~0.8s


SENSITIVITY

Switches from light to dark in just 1/25000 sec


SHADE

Darking shade under range of DIN5-9/9-13


GRIND

Perfect for TIG,MIG,MAG, MMA,and ARC welder

Packaging Method

Option A

Bulk Packing: 20pcs/CTN

Option A
Option B

Individual Packing: 6pcs/CTN

Option B
