1. Synergic MIG for stable & repeatable welds.
2. Separate voltage adjustment function.
3. Closed-loop feedback, constant voltage output.
4. Wide input voltage tolerance ±15%.
5. Adjustable welding current & voltage.
6. Weld carbon, alloy and stainless steel.
7. Pulse & double pulse for aluminum welding.
Designs:

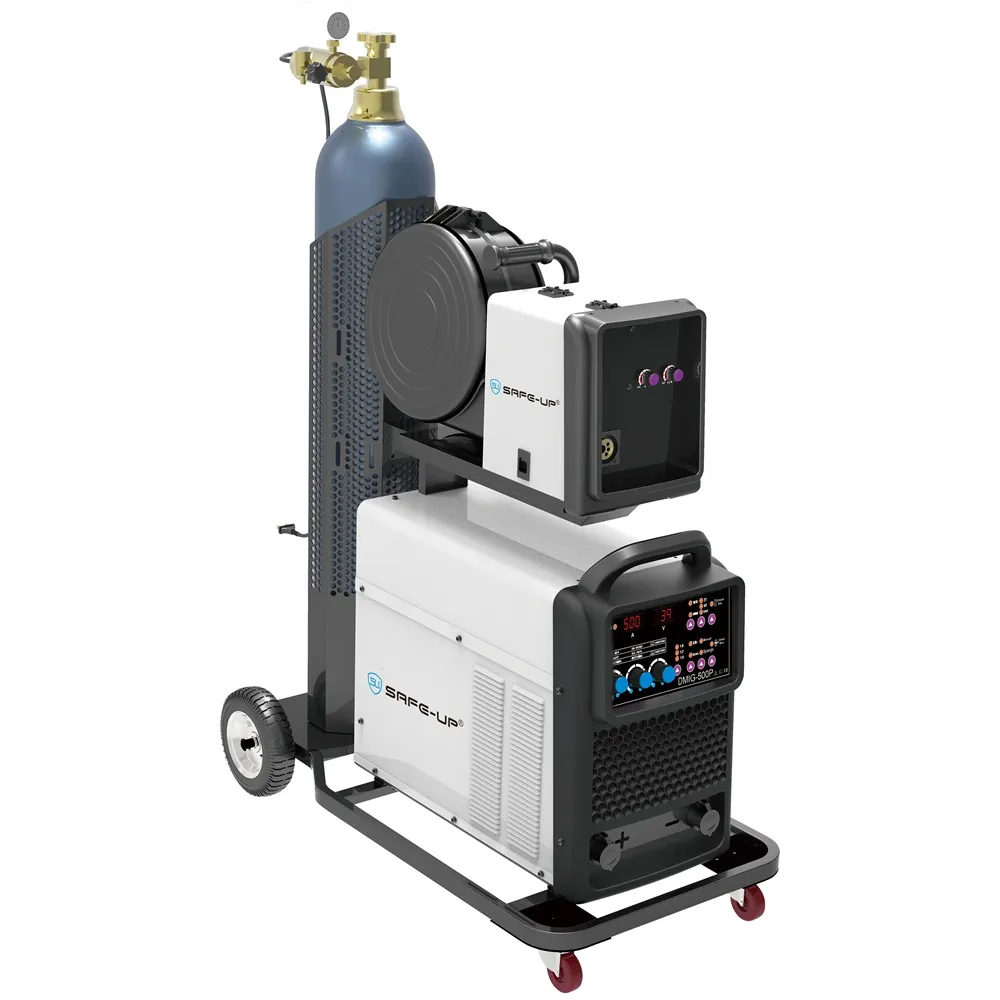

| Parameter | UNDMIG‑ 350P | UNDMIG‑ 500P | UNDMIG‑ 630P |
| Mains Voltage (V) | 380 | 380 | 380 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 75 | 75 | 80 |
| Rated Capacity (KVA) | 13.7 | 24.4 | 35.8 |
| Wire Dia. (MM) | 0.8-1.2 | 1.0-1.6 | 1.0-1.6 |
| Output Current (A) | 50-350 | 100-500 | 100-630 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 110*65*115 | 110*65*115 | 110*65*115 |
| Weight (KG) | 100.0 | 120.0 | 125.0 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
