1. Synergic MIG delivers stable repeatable welds
2. Independent voltage adjustment, low spatter
3. Closed-loop feedback, ±15% wide voltage range
4. Adjustable welding voltage and current
5. Built‑in polarity switch for gas/gasless wire
6. Supports MIG-MAG, MMA and Lift TIG
7.Works with 1kg / 5kg welding wire spools
Designs:

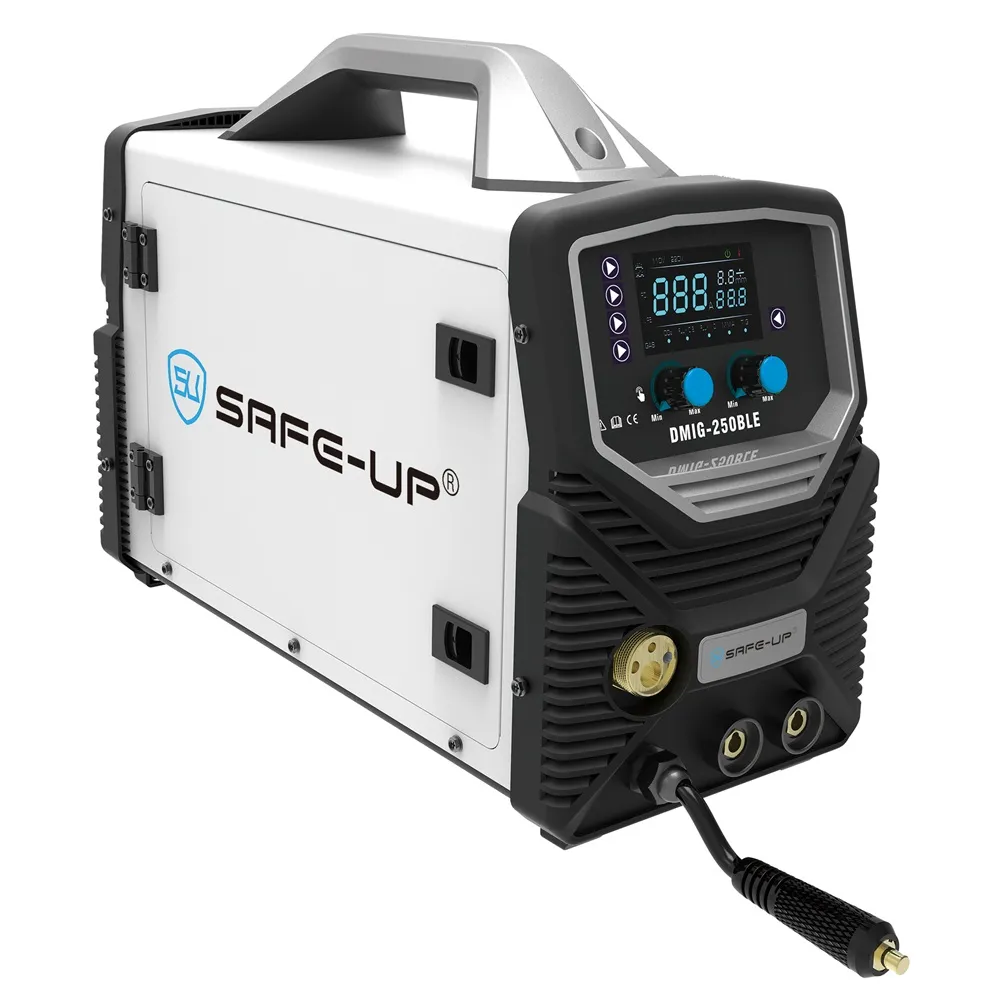

| Parameter | UNDMIG‑ 160BLE | UNDMIG‑ 200BLE | UNDMIG‑ 250BLE |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 62 | 62 | 62 |
| Rated Input Capacity (KVA) | 6 | 8.2 | 11.3 |
| Wire Dia. (MM) | 0.6-1.0 | 0.8-1.0 | 0.8-1.0 |
| Output Current (A) | 50-160 | 50-200 | 50-250 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 52*23*39 | 52*23*39 | 52*23*39 |
| Weight (KG) | 10.0 | 10.5 | 10.5 |

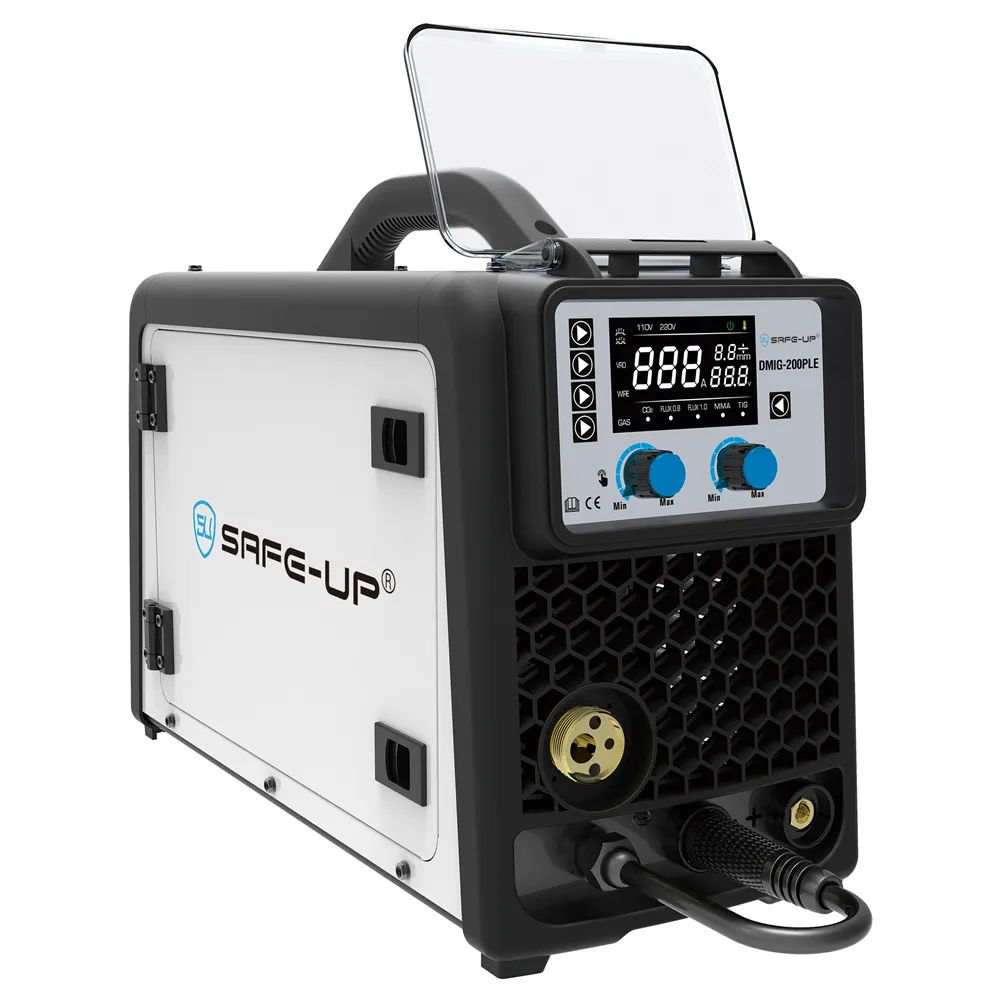

| Parameter | UNDMIG‑ 160PLE | UNDMIG‑ 200PLE | UNDMIG‑ 250PLE |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 62 | 62 | 62 |
| Rated Input Capacity (KVA) | 6 | 8.2 | 11.3 |
| Wire Dia. (MM) | 0.6-1.0 | 0.8-1.0 | 0.8-1.0 |
| Output Current (A) | 50-160 | 50-200 | 50-250 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 49*22*37 | 49*22*37 | 49*22*37 |
| Weight (KG) | 9.0 | 9.5 | 9.5 |

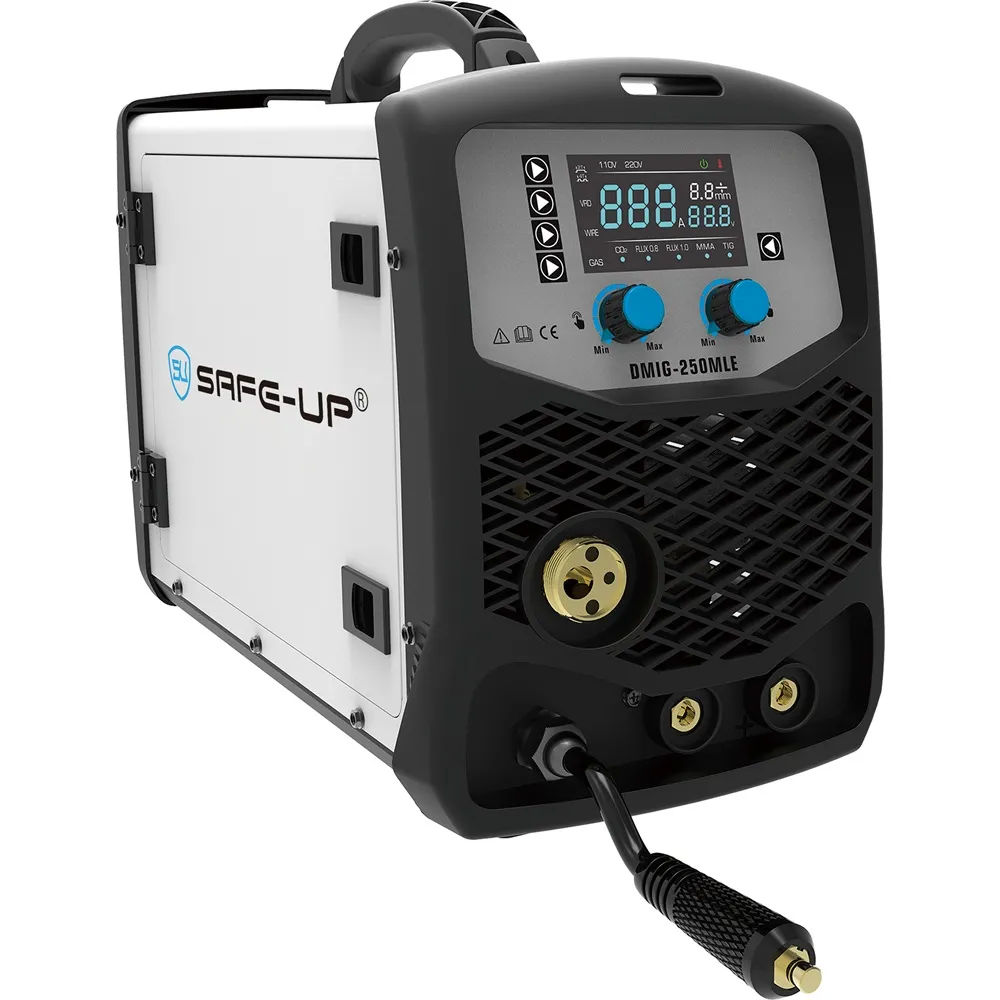

| Parameter | UNDMIG‑ 160MLE | UNDMIG‑ 200MLE | UNDMIG‑ 250MLE |
| Mains Voltage (V) | 220 | 220 | 220 |
| Frequency (HZ) | 50/60 | 50/60 | 50/60 |
| No-load Voltage (V) | 62 | 62 | 62 |
| Rated Input Capacity (KVA) | 6 | 8.2 | 11.3 |
| Wire Dia. (MM) | 0.6-1.0 | 0.8-1.0 | 0.8-1.0 |
| Output Current (A) | 50-160 | 50-200 | 50-250 |
| Rated Duty Cycle (%) | 60 | 60 | 60 |
| Dimensions (CM) | 49*22*37 | 49*22*37 | 49*22*37 |
| Weight (KG) | 9.0 | 9.5 | 9.5 |
individual packing，6pcs/ctn
individual packing，6pcs/ctn
